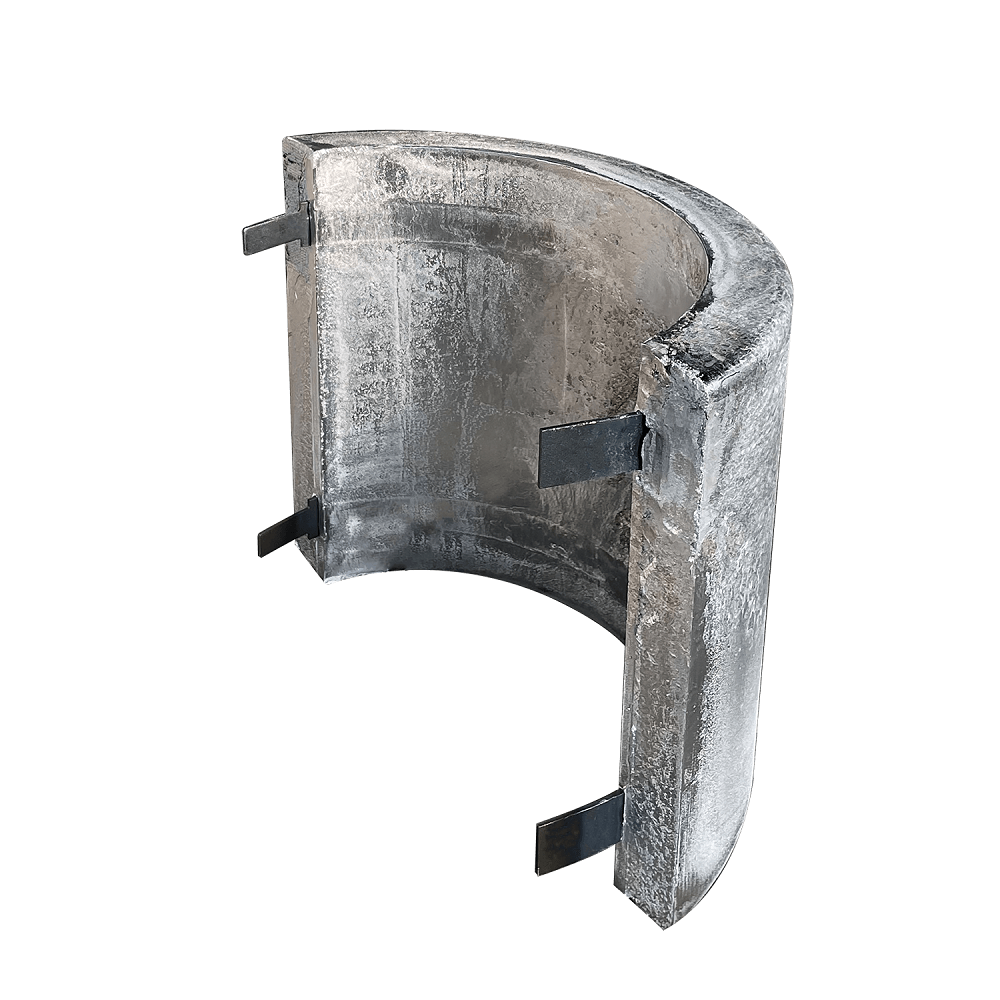

BaiQi aluminum anodes are designed to safeguard metal structures against corrosion in seawater and brackish water environments. We provide an extensive selection of half-shell and segmented aluminum bracelet anodes, available in both welded and bolted configurations. Composed of multiple individual anode sections, these bracelet anodes are ideally suited for direct circumferential mounting around cylindrical structures.
Chemical Composition
|
Element |
BQ-Al-1 Content (%) |
BQ-Al-2 Content (%) |
BQ-Al-3 Content (%) |
|
Zinc (Zn) |
2.000～6.000 |
2.500～5.750 |
4.750～5.750 |
|
Indium (In) |
0.010～0.020 |
0.015～0.040 |
0.015～0.020 |
|
Silicon (Si) |
0.080～0.200 |
0.120 max. |
0.060～0.120 |
|
Iron (Fe) |
0.130 max. |
0.090 max. |
0.120 max. |
|
Copper (Cu) |
0.006 max. |
0.003 max. |
0.003 max. |
|
Cadmium (Cd) |
— |
0.002 max. |
0.002 max. |
|
Other Impurities |
0.100 max. |
0.100 max. |
0.100 max. |
|
Aluminum (Al) |
Remainder |
Remainder |
Remainder |
Electrochemical Performance
|
Technical Measurement |
Performance |
|
Open Circuit Voltage (min.) |
-1.10 Volts |
|
Closed Circuit Voltage (min.) |
-1.05 Volts |
|
Current Capacity |
2500 A.h/kg (1135 A.h/lbs) |
|
Current Efficiency (min.) |
90% |
|
Consumption Rate |
3.4 kg/A.y (7.6 lbs/A.y) |
* The open/closed circuit voltage is with respect to a Ag/AgCl reference electrode.
Specification
|
Bracelet Welded anodes |
TAPERED |
SQUARE |
||||||
|
PIPE |
Length |
Dia |
THK |
GAP |
Weight |
Weight |
||
|
inch |
mm |
mm |
mm |
mm |
Net kg |
Gross kg |
Net kg |
Gross kg |
|
2 |
360 |
70 |
40 |
30 |
8.5 |
11.5 |
10.0 |
13.0 |
|
4 |
360 |
120 |
40 |
30 |
13.5 |
17.3 |
15.5 |
19.3 |
|
6 |
360 |
170 |
40 |
30 |
18.6 |
23.2 |
21.4 |
26.0 |
|
8 |
360 |
230 |
50 |
70 |
30.8 |
35.2 |
34.7 |
39.1 |
|
8 |
600 |
230 |
50 |
70 |
54.7 |
59.4 |
58.6 |
63.3 |
|
10 |
360 |
280 |
50 |
70 |
37.5 |
42.6 |
41.1 |
47.8 |
|
10 |
600 |
280 |
50 |
70 |
66.5 |
71.6 |
71.2 |
76.3 |
|
12 |
500 |
310 |
50 |
70 |
60.0 |
65.9 |
65.2 |
71.0 |
|
14 |
500 |
361 |
50 |
70 |
70.0 |
76.4 |
75.7 |
82.3 |
|
18 |
500 |
463 |
50 |
100 |
85.4 |
95.2 |
92.5 |
102.2 |
|
20 |
500 |
513 |
50 |
100 |
95.0 |
105.6 |
102.8 |
113.4 |
|
24 |
500 |
615 |
60 |
120 |
138.1 |
154.7 |
147.5 |
164.1 |
|
28 |
500 |
717 |
60 |
120 |
161.7 |
180.7 |
172.6 |
191.7 |
