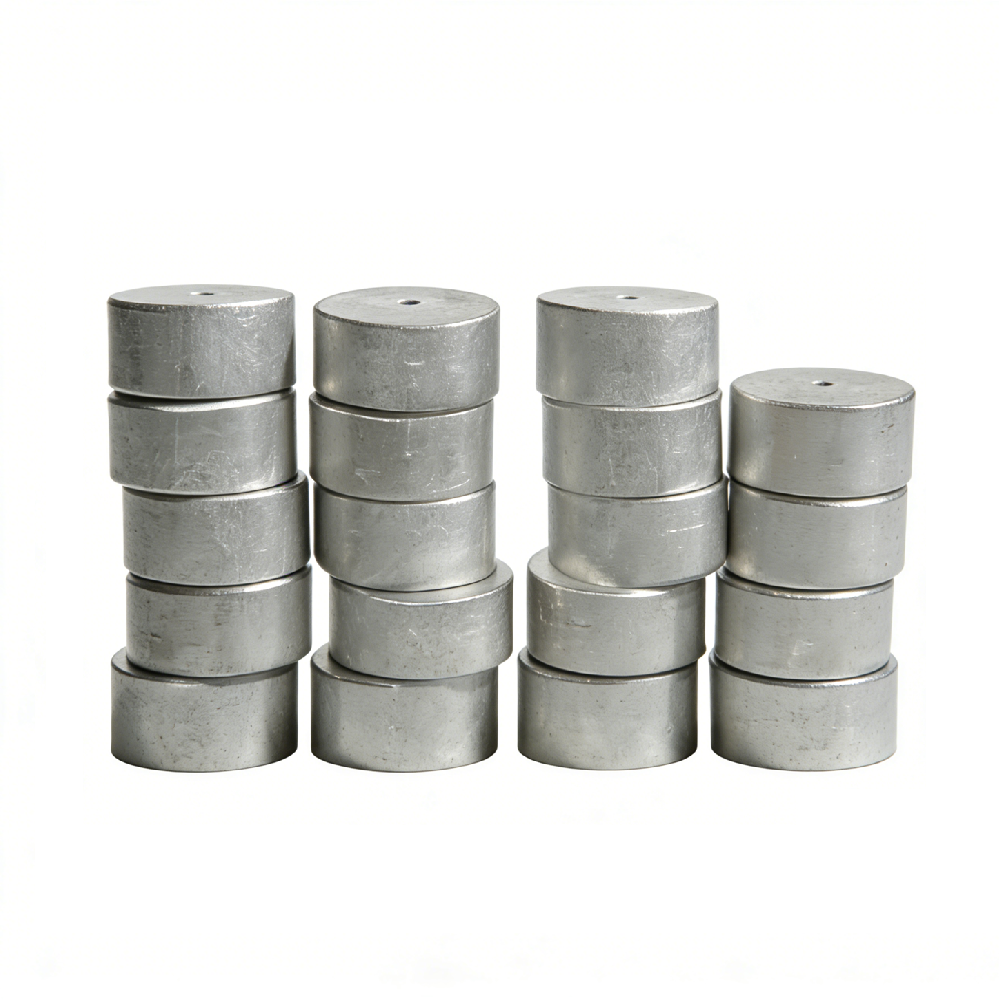

Bolted Aluminum Condenser Anode (Round Shape)

Aluminum Disc Anodes for Condensers, specially designed for water-cooled condensers, central air conditioning condensers and industrial heat exchange equipment. Made of high-purity aluminum alloy with sacrificial anode protection design, they effectively prevent electrochemical corrosion on condenser pipes and shells, extend service life, feature easy installation, stable corrosion resistance and good electrical conductivity. Suitable for various industrial refrigeration and heat exchange systems, they are high-quality accessories for condenser anti-corrosion protection.
  • Bolted Aluminum Condenser Anode (Round Shape)

Description

Chemical Composition
Element Content (%)
Zinc (Zn) 2.800 ~ 6.500
Indium (In) 0.010 ~ 0.020
Silicon (Si) 0.080 ~ 0.200
Iron (Fe) 0.120 max.
Copper (Cu) 0.006 max.
Cadmium (Cd) 0.002 max.
Other Impurities 0.120 max.
Aluminum (Al) Remainder

Electrochemical Properties
Technical Measurement Performance
Open Circuit Voltage (min.) -1.10 Volts
Closed Circuit Voltage (min.) -1.05 Volts
Current Capacity 2500 A.h/kg (1135 A.h/lbs)
Current Efficiency (min.) 90%
Consumption Rate 3.4 kg/A.y (7.6 lbs/A.y)

The open/closed circuit voltage is with respect to a Ag/AgCl reference electrode.
