Canistered High Silicon Cast Iron Anode

Name: Canistered High Silicon Cast Iron Anode
Brand: BaiQi Metal
Availability: InStock
Rating: 5 (1 reviews)

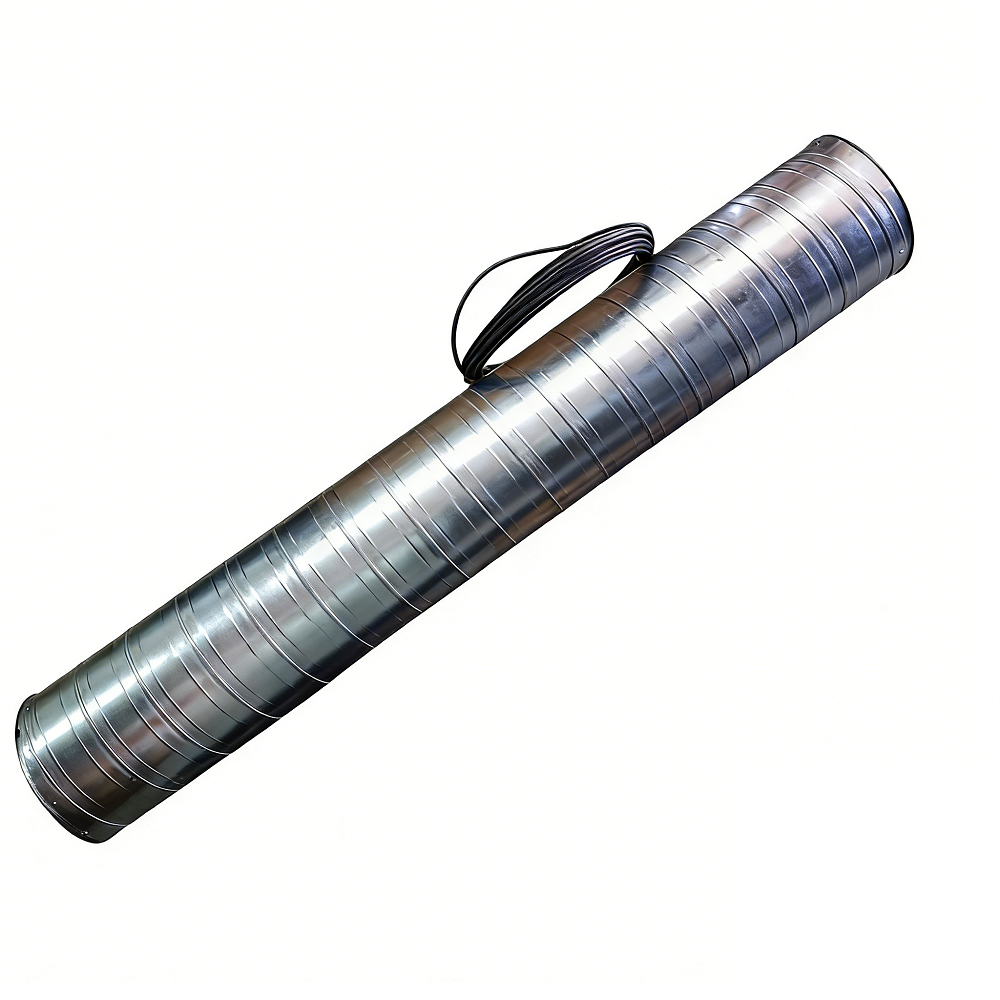

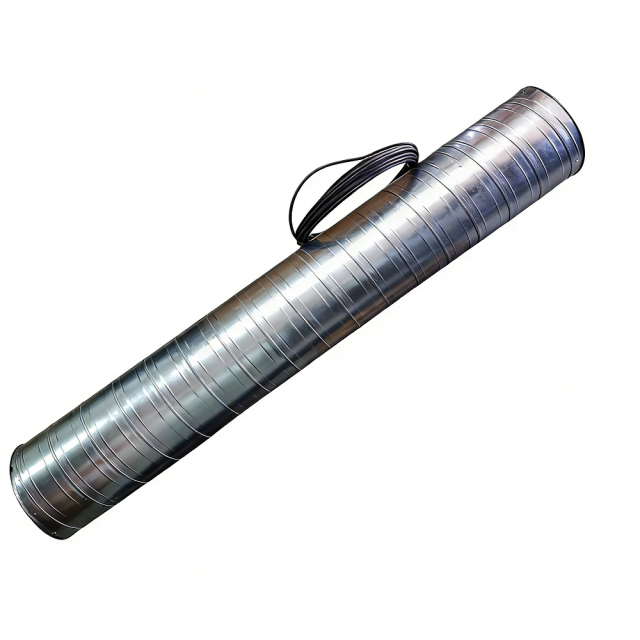

BaiQi’s Canistered HSCI Anode: Galvanized steel can with calcined coke backfill for cathodic protection. Casing corrodes fast post-install—ideal for buried/subsea use.BaiQi’s canistered anode features a tubular or stick-type high silicon cast iron anode securely pre-packaged within a large spirally wound galvanized mild steel can, filled with calcined petroleum coke backfill. The canister casing is designed solely to withstand transportation and installation. Upon installation, the outer casing becomes part of the anode system and is engineered to corrode rapidly, leaving the anode and coke backfill intact.

GET A QUOTE

Description

BaiQi implements stringent control measures for the chill casting process, adhering to top-tier industry standards: compliant with X-Ray Level 1 per ASTM E186/E446, and chemical compositions conforming to ASTM A518-99 Grade 1 or 3. Specifically engineered for harsh environments (e.g., brackish water, saltwater), ASTM A518 Grade 3 features elevated chromium content to enhance anode performance.

Element	ASTM A518/A518M Grade 1 (Si-Fe) Content (%)	ASTM A518/A518M Grade 3 (Si-Fe-Cr) Content (%)	BS 1591 1975 Content (%)
Silicon (Si)	14.20 ~ 14.75	14.20 ~ 14.75	14.25 ~ 15.25
Chromium (Cr)	0.500 max.	3.250 ~ 5.000	0.500 max.
Manganese (Mn)	1.500 max.	1.500 max.	0.500 max.
Copper (Cu)	0.500 max.	0.500 max.	—
Molybdenum (Mo)	0.500 max.	0.200 max.	—
Carbon (C)	0.650 ~ 1.100	0.700 ~ 1.100	1.400 max.
Phosphorus (P)	—	—	0.250 max.
Sulphur (S)	—	—	0.100 max.
Iron (Fe)	Remainder	Remainder	Remainder

Application:
Our high silicon cast iron tubular anodes provide reliable corrosion protection for buried and subsea structures, including pipelines, offshore oil drilling platforms, and more. Leveraging dedicated connectors, 2 personnel can accomplish the rapid installation of 200 anodes in under 8 hours.
