Name: Electrolytic Cell Sodium Hypochlorite Generator (Blind Plate Series)
Brand: BaiQi Metal
Availability: InStock
Rating: 5 (1 reviews)

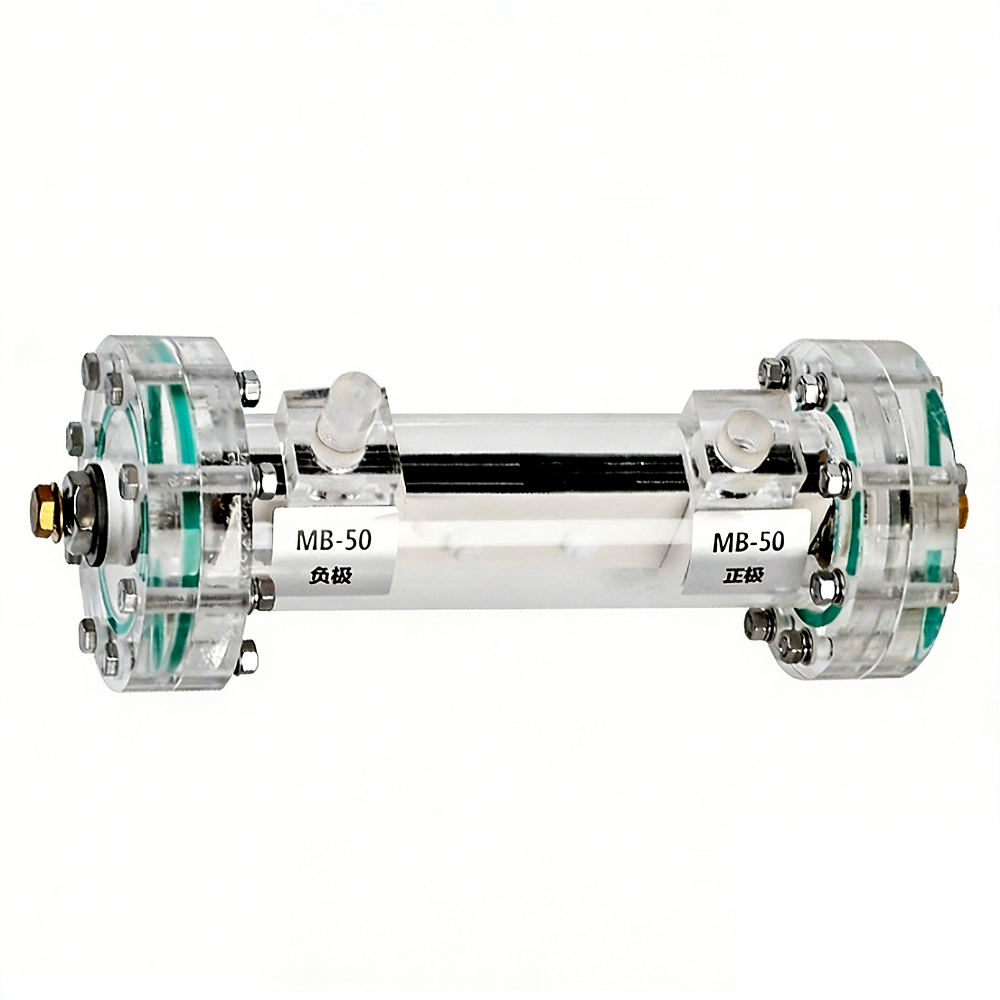

Electrolytic Cell Sodium Hypochlorite Generator (Blind Plate Series)

Based on sodium hypochlorite demand and installation requirements, we offer both single-plate and multi-plate electrolytic cells. Single-plate electrodes are suitable for smaller-sized electrolytic cells, while multi-plate electrode assemblies are designed for relatively larger units.

Description

Brine solution contains cations such as Na⁺, H⁺ and anions such as Cl⁻, OH⁻. When electrodes are inserted into the solution and a certain voltage is applied, the electrolyte conducts electricity through ion migration and electrode reactions:

Anions (Cl⁻, OH⁻) migrate to the anode
Cations (Na⁺, H⁺) migrate to the cathode

Ions undergo discharge reactions on the corresponding electrodes, generating target products through redox reactions

Anode reaction: 2Cl⁻ - 2e⁻ → Cl₂↑
Cathode reaction: 2H⁺ + 2e⁻ → H₂↑

NaCl + H₂O + Direct Current → NaClO + H₂↑

Item	Specification
Product Name	Sodium Hypochlorite Electrolytic Cell
Housing	PVC/PMMA
Coating	Nano-scale Ruthenium-Iridium Coating
Brine Concentration	2.8%~3.5%
Specification	50G-5000G/H
Available Chlorine Concentration	6000-8000PPM

Specification	MB-50	MB-100	MB-200	MB-350	MB-500	MB-1000
Flange Outer Diameter	140mm	140mm	170mm	200mm	200mm	240mm
Cell Body Outer Diameter	80mm	80mm	110mm	130mm	140mm	160mm
Total Equipment Length	370mm	630mm	634mm	630mm	770mm	1000mm
Inlet/Outlet Diameter	32.3mm	32.3mm	32.3mm	32.3mm	32.3mm	63.3mm
Operating Current	30-40A	30-40A	60-80A	90-120A	90-120A	130-160A
Operating Voltage	7~8V	14-16V	14-16V	14-16V	21-24V	28-32V
Flow Rate	7-10L/H	12-20L/H	25-40L/H	45-70L/H	62-100L/H	125-200L/H
