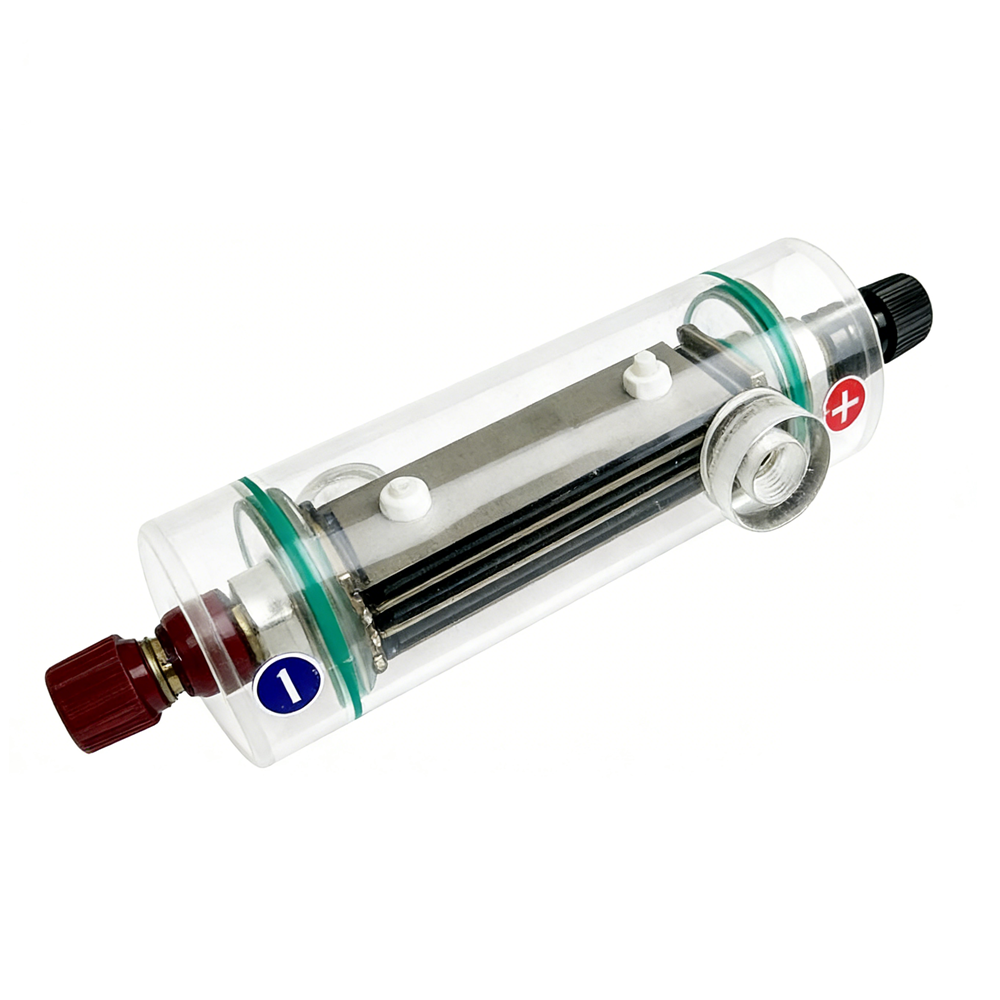

Name: Electrolytic Cell Sodium Hypochlorite Generator (O-Ring Sealing)
Brand: BaiQi Metal
Availability: InStock
Rating: 5 (1 reviews)

Electrolytic Cell Sodium Hypochlorite Generator (O-Ring Sealing)

O-Ring Sealing Series Electrolytic Cell features reliable O-ring sealing for leak-free operation. Its transparent housing enables visual electrolysis monitoring, serving as a durable core component for electrolytic sodium hypochlorite generators.

Description

Brine solution contains cations such as Na⁺, H⁺ and anions such as Cl⁻, OH⁻. When electrodes are inserted into the solution and a certain voltage is applied, the electrolyte conducts electricity through ion migration and electrode reactions:

Anions (Cl⁻, OH⁻) migrate to the anode
Cations (Na⁺, H⁺) migrate to the cathode

Ions undergo discharge reactions on the corresponding electrodes, generating target products through redox reactions

Anode reaction: 2Cl⁻ - 2e⁻ → Cl₂↑
Cathode reaction: 2H⁺ + 2e⁻ → H₂↑

NaCl + H₂O + Direct Current → NaClO + H₂↑

Item	Specification
Product Name	Sodium Hypochlorite Electrolytic Cell
Housing	PVC/PMMA
Coating	Nano-scale Ruthenium-Iridium Coating
Brine Concentration	2.8%~3.5%
Specification	50G-5000G/H
Available Chlorine Concentration	6000-8000PPM

Model	Cell Body Outer Diameter	Inlet/Outlet Pipe Diameter	Total Equipment Length	Operating Current	Operating Voltage	Flow Rate
OR-20	60mm	DN15 Standard Female Thread Connection	250mm	20-30A	3.5-4V	2-4L/H
OR-40	80mm	DN15 Standard Female Thread Connection	250/350mm	40-45A	3.5-4V	5-8L/H
