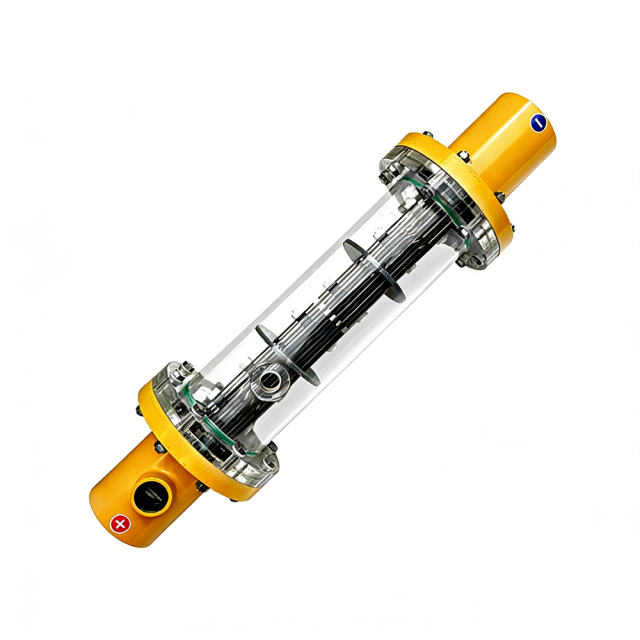

Name: Electrolytic Sodium Hypochlorite Generator (Three-Way Connections at Both Ends)
Brand: BaiQi Metal
Availability: InStock
Rating: 5 (1 reviews)

Electrolytic Sodium Hypochlorite Generator (Three-Way Connections at Both Ends)

The Triple-Connection Series Electrolytic Cell features a purpose-built three-way connection design at both ends, enabling flexible integration with a variety of water treatment pipeline layouts. Its transparent, high-strength housing allows real-time observation of internal electrolysis conditions, making maintenance easier and ensuring operational visibility.

As a core component for electrolytic sodium hypochlorite generators and other water disinfection equipment, it delivers stable electrochemical performance and efficient electrolysis reactions, supporting the reliable long-term operation of your water treatment systems.

Description

Brine solution contains cations such as Na⁺, H⁺ and anions such as Cl⁻, OH⁻. When electrodes are inserted into the solution and a certain voltage is applied, the electrolyte conducts electricity through ion migration and electrode reactions:

Anions (Cl⁻, OH⁻) migrate to the anode
Cations (Na⁺, H⁺) migrate to the cathode

Ions undergo discharge reactions on the corresponding electrodes, generating target products through redox reactions

Anode reaction: 2Cl⁻ - 2e⁻ → Cl₂↑
Cathode reaction: 2H⁺ + 2e⁻ → H₂↑

NaCl + H₂O + Direct Current → NaClO + H₂↑

Item	Specification
Product Name	Sodium Hypochlorite Electrolytic Cell
Housing	PVC/PMMA
Coating	Nano-scale Ruthenium-Iridium Coating
Brine Concentration	2.8%~3.5%
Specification	50G-5000G/H
Available Chlorine Concentration	6000-8000PPM

Specification	ST-100	ST-200	ST-350	ST-500	ST-800	ST-1000
Flange Outer Diameter	140mm	170mm	200mm	200mm	240mm	240mm
Housing Outer Diameter	80mm	110mm	130mm	140mm	160mm	160mm
Total Equipment Length	680mm	680mm	680mm	680mm	990mm	990mm
Inlet/Outlet Diameter	32.3mm	32.3mm	32.3mm	32.3mm	63.3mm	63.3mm
Operating Current	30-40A	60-80A	90-120A	90-130A	120-160A	135-180A
Operating Voltage	14-16V	14-16V	14-16V	21-24V	28-32V	28-32V
Flow Rate	12-20L/H	25-40L/H	45-70L/H	62-100L/H	100-160L/H	125-200L/H
