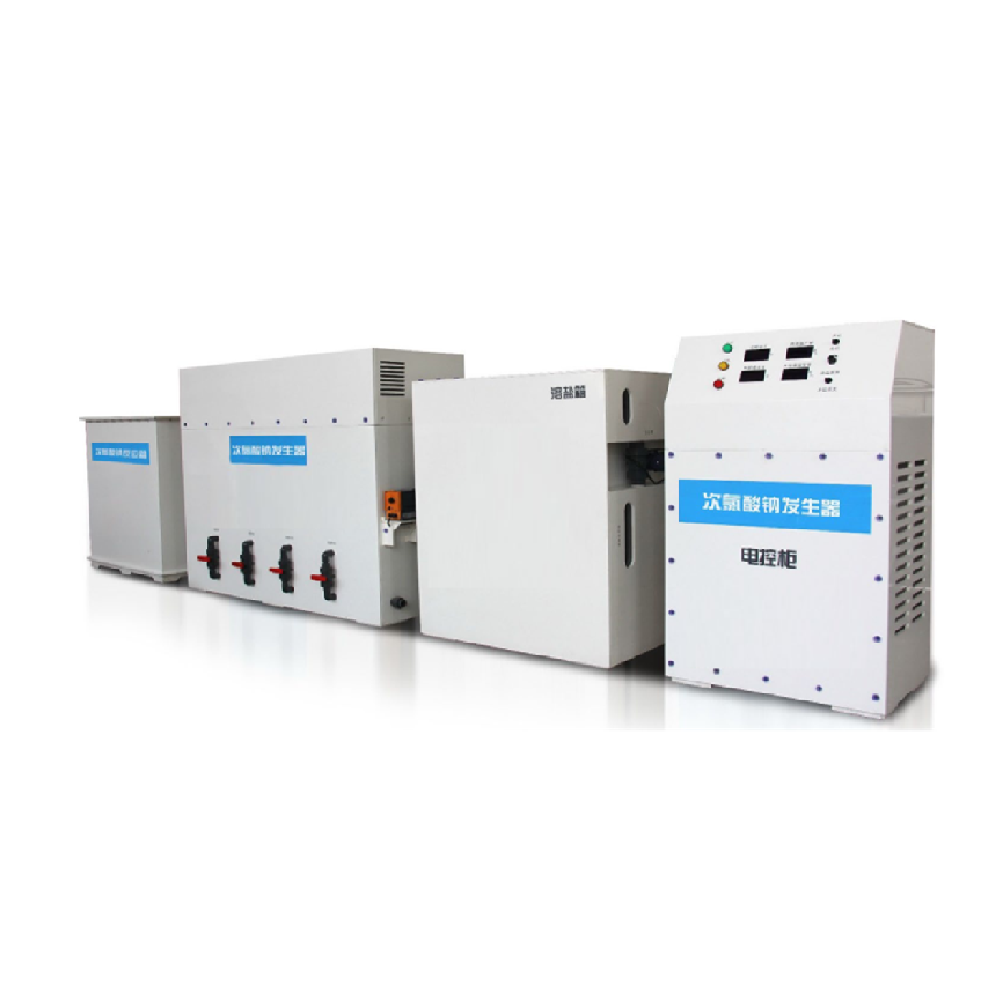

BaiQi Metal brand electrolytic (salt) sodium hypochlorite generator consists of a water softener, brine tank, ion-exchange membrane electrolyzer, electrolysis power supply (including control system), sodium hypochlorite storage tank, and sodium hypochlorite dosing system.

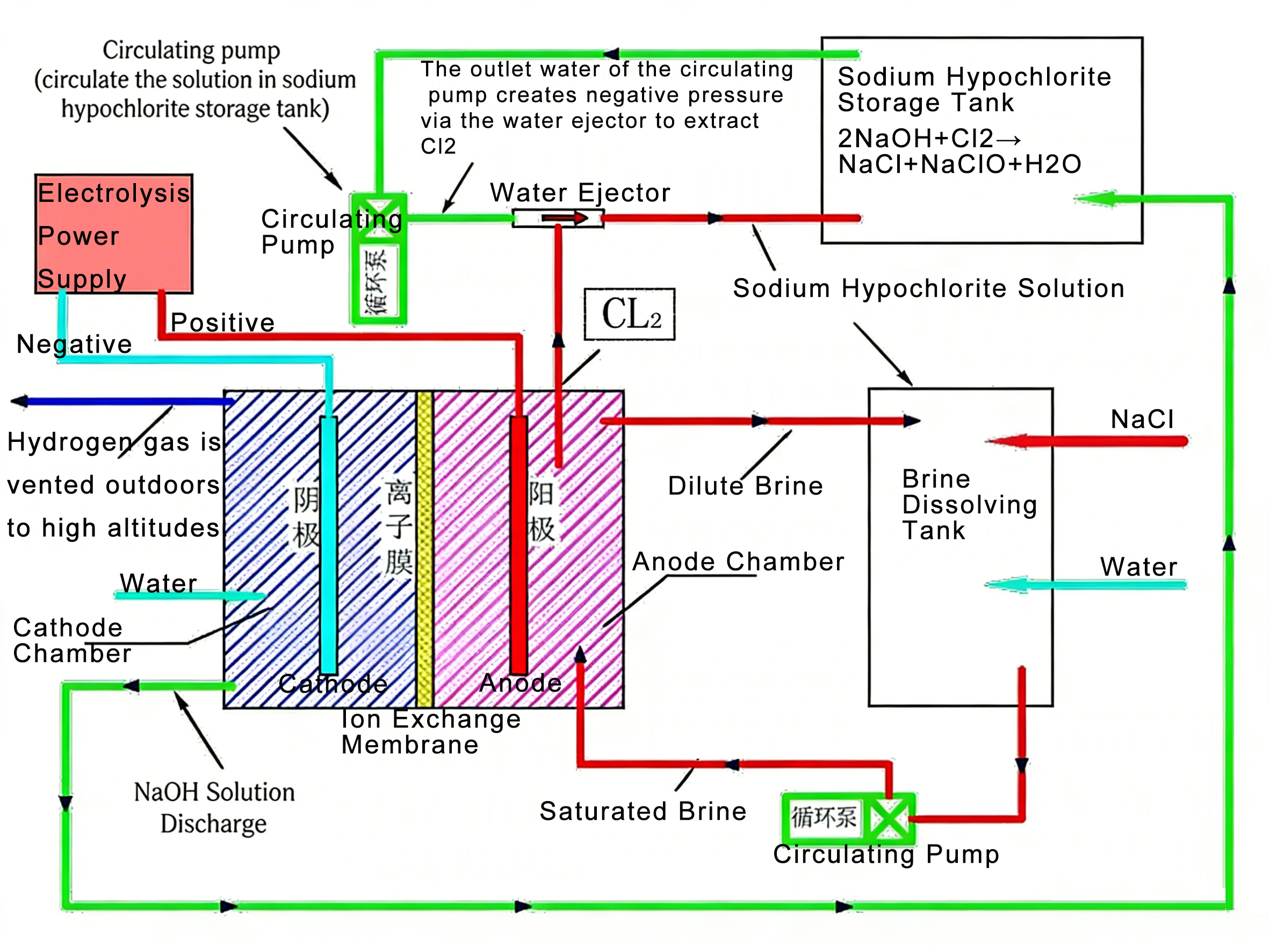

The ion-exchange membrane electrolyzer performs cyclic electrolysis of saturated brine. Chlorine gas (Cl₂) generated at the anode and sodium hydroxide (NaOH) produced at the cathode react in the sodium hypochlorite storage tank to form a sodium hypochlorite solution.
Electrolytic Reaction Process:
Reaction Principle: NaCl+H2O+DC→NaClO+H2
Electrode Reactions: Anode: 2Cl−−2e−→Cl2↑
Cathode: 2H2O+2e−→H2↑+2OH−
Solution Reaction: 2NaOH+Cl2→NaCl+NaClO+H2O
Chemical Reaction Equations:
Anode (oxidation, electrons lost): 2Cl−−2e−=Cl2↑
Cathode (reduction, electrons gained): 2H++2e−=H2↑
Reaction ① (electrolysis): 2NaCl+2H2O→(electrolysis) → 2NaOH+H2↑+Cl2↑
Reaction ② (solution reaction): 2NaOH+Cl2→NaCl+NaClO+H2O
Overall reaction (① + ②): NaCl+H2O→NaClO+H2↑
|
Model |
Available Chlorine Output |
Electrolysis Current |
Electrolysis Voltage |
Input Voltage |
Max Salt Consumption |
|
BQ-L-200S |
0 ~ 100 g/h |
0 ~ 100 A |
0 ~ 12 V |
AC220V |
180 g/h |
|
BQ-L-200S |
0 ~ 200 g/h |
0 ~ 200 A |
0 ~ 12 V |
AC380V |
360 g/h |
|
BQ-L-2000L |
0 ~ 300 g/h |
0 ~ 300 A |
0 ~ 12 V |
AC380V |
540 g/h |
|
BQ-L-2000L |
0 ~ 400 g/h |
0 ~ 400 A |
0 ~ 12 V |
AC380V |
720 g/h |
|
BQ-L-2000L |
0 ~ 500 g/h |
0 ~ 500 A |
0 ~ 12 V |
AC380V |
900 g/h |
|
BQ-L-2000L |
0 ~ 600 g/h |
0 ~ 600 A |
0 ~ 12 V |
AC380V |
1080 g/h |
|
BQ-L-2000L |
0 ~ 800 g/h |
0 ~ 800 A |
0 ~ 12 V |
AC380V |
1440 g/h |
|
BQ-L-2000L |
0 ~ 1000 g/h |
0 ~ 1000 A |
0 ~ 12 V |
AC380V |
1800 g/h |
|
BQ-L-2000L |
0 ~ 1500 g/h |
0 ~ 1500 A |
0 ~ 12 V |
AC380V |
2700 g/h |
|
BQ-L-2000L |
0 ~ 2000 g/h |
0 ~ 2000 A |
0 ~ 12 V |
AC380V |
3600 g/h |
|
BQ-L-5000Z |
0 ~ 3000 g/h |
0 ~ 3000 A |
0 ~ 12 V |
AC380V |
5400 g/h |
|
BQ-L-5000Z |
0 ~ 4000 g/h |
0 ~ 4000 A |
0 ~ 12 V |
AC380V |
7200 g/h |
|
BQ-L-5000Z |
0 ~ 5000 g/h |
0 ~ 5000 A |
0 ~ 12 V |
AC380V |
9000 g/h |
|
BQ-L-5000Z |
0 ~ 10000 g/h |
0 ~ 10000 A |
0 ~ 12 V |
AC380V |
18000 g/h |
