Name: High Silicon Cast Iron Tubular Anode
Brand: BaiQi Metal
Availability: InStock
Rating: 5 (1 reviews)

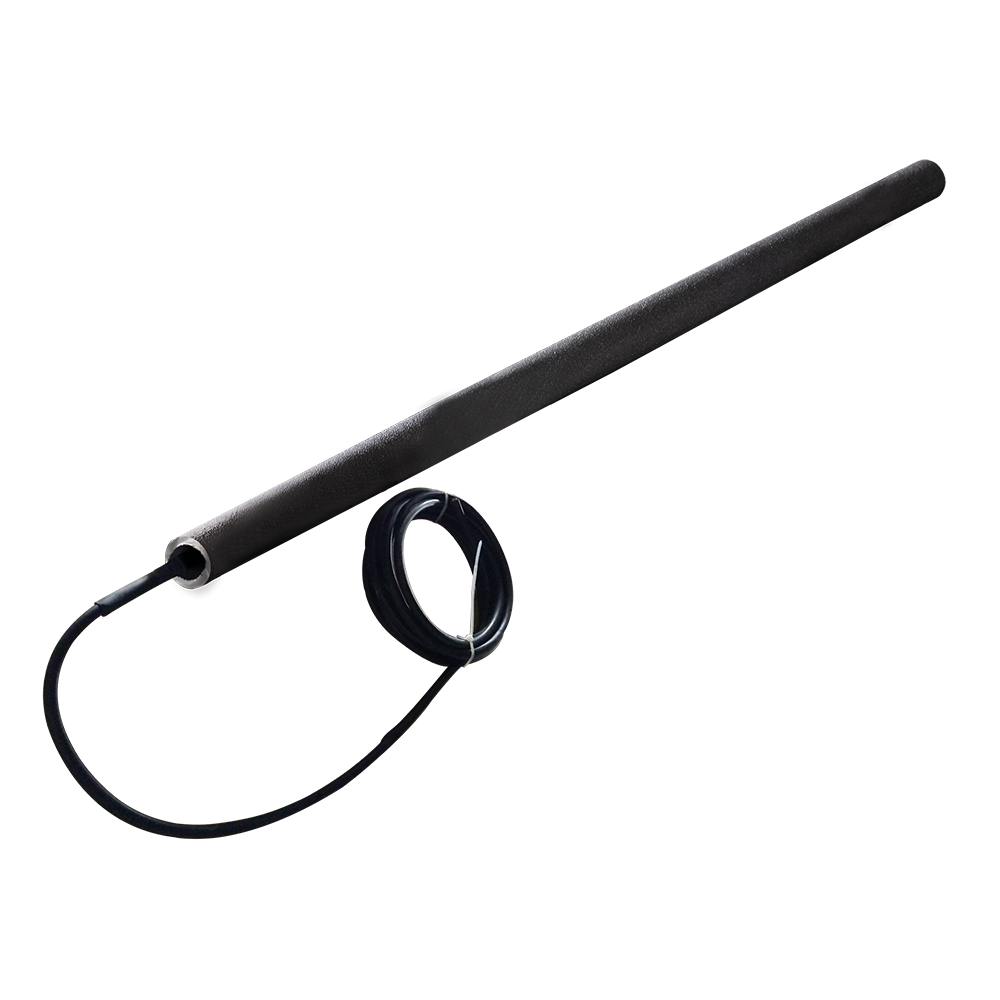

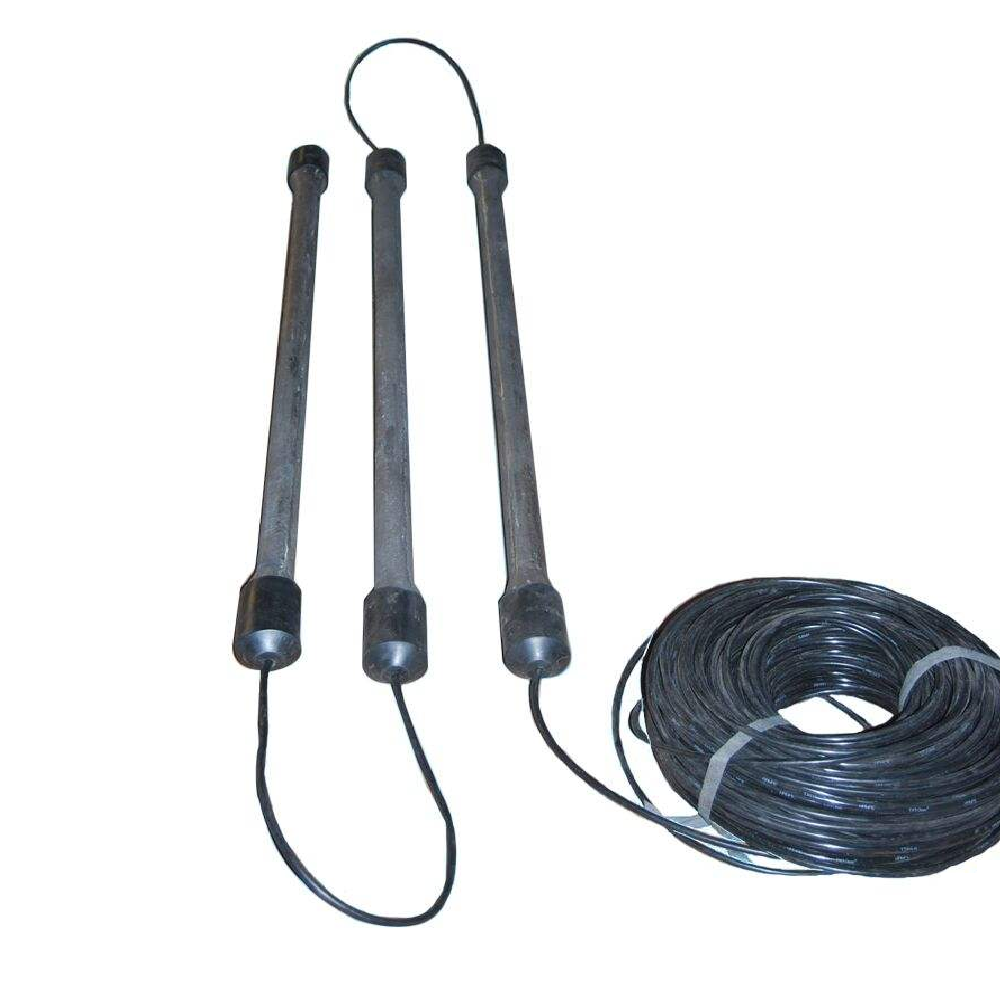

High Silicon Cast Iron Tubular Anode

High silicon cast iron anodes (HSCI anode) are among the most widely used for impressed current cathodic protection (ICCP) systems. Their high silicon content forms a continuous thin hydrated silica film, preventing metal pitting. BaiQi’s tubular high silicon cast iron anodes offer exceptional corrosion resistance and low consumption rate in low-pH environments.

Description

BaiQi implements stringent control measures for the chill casting process, adhering to top-tier industry standards: compliant with X-Ray Level 1 per ASTM E186/E446, and chemical compositions conforming to ASTM A518-99 Grade 1 or 3. Specifically engineered for harsh environments (e.g., brackish water, saltwater), ASTM A518 Grade 3 features elevated chromium content to enhance anode performance.

Element	ASTM A518/A518M Grade 1 (Si-Fe) Content (%)	ASTM A518/A518M Grade 3 (Si-Fe-Cr) Content (%)	BS 1591 1975 Content (%)
Silicon (Si)	14.20 ~ 14.75	14.20 ~ 14.75	14.25 ~ 15.25
Chromium (Cr)	0.500 max.	3.250 ~ 5.000	0.500 max.
Manganese (Mn)	1.500 max.	1.500 max.	0.500 max.
Copper (Cu)	0.500 max.	0.500 max.	—
Molybdenum (Mo)	0.500 max.	0.200 max.	—
Carbon (C)	0.650 ~ 1.100	0.700 ~ 1.100	1.400 max.
Phosphorus (P)	—	—	0.250 max.
Sulphur (S)	—	—	0.100 max.
Iron (Fe)	Remainder	Remainder	Remainder

Application：
Our high silicon cast iron tubular anodes provide reliable corrosion protection for buried and subsea structures, including pipelines, offshore oil drilling platforms, and more. Leveraging dedicated connectors, 2 personnel can accomplish the rapid installation of 200 anodes in under 8 hours.
