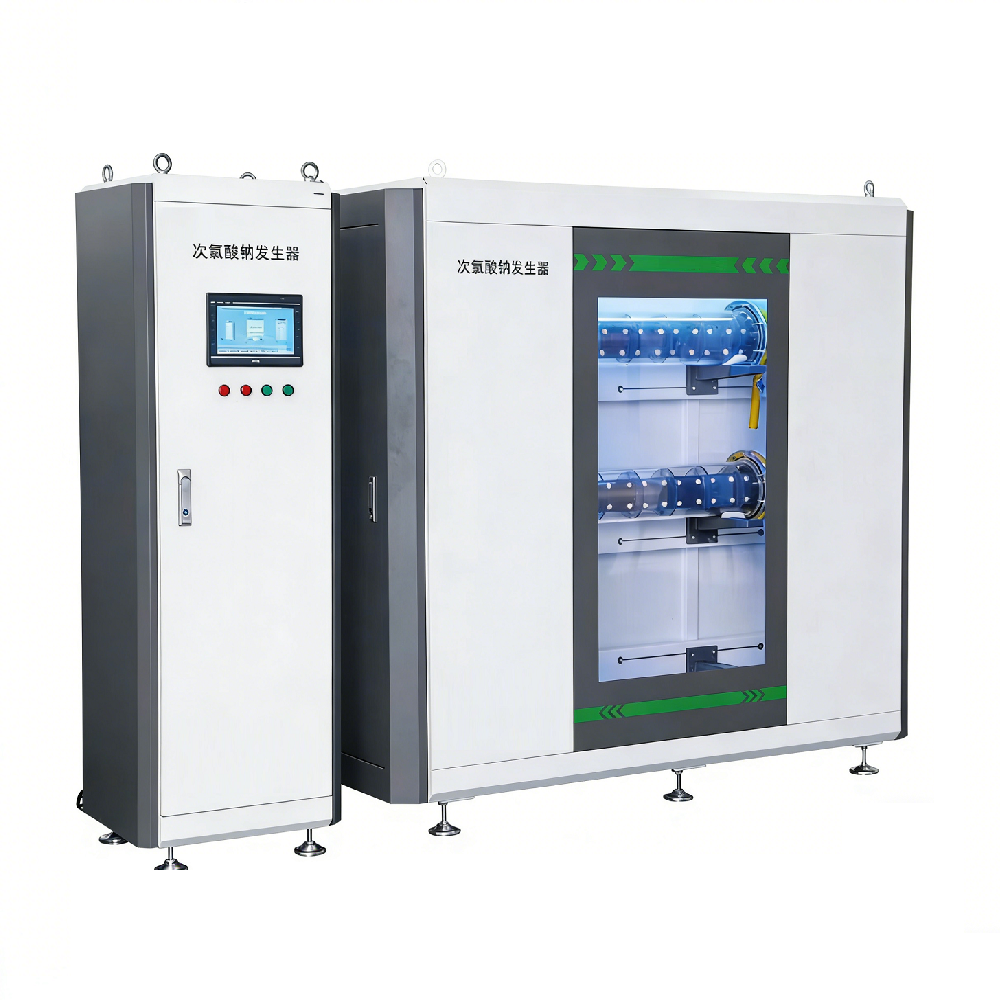

BaiQi Large-Scale Integrated Sodium Hypochlorite Generator (500g/h-20000g/h available chlorine output) is a high-performance, industrial-grade water disinfection system tailored for large-scale water treatment projects. With integrated modular design, patented technology, and intelligent automation, it delivers stable, efficient, and low-cost disinfection, perfectly meeting the rigorous demands of large waterworks, municipal sewage plants, and industrial circulating water systems.
Integrated Modular Design: Compact structure with clear process flow, flexible installation, and easy operation; patented appearance combines aesthetics and practicality.
Stable & Efficient Performance: Transparent electrolytic cell for visual monitoring; independently developed high-frequency constant current power supply (100% load, current deviation <1%) ensures consistent disinfection effect.
Intelligent Automation: Automatic salt addition system, multiple interlock detection (flow rate, concentration, pressure, temperature, hydrogen level), and support for unattended 24/7 operation.
Low Operating Cost: Produces 1kg of available chlorine with only 3.5kg of salt and 4.5kW·h of electricity, generating 6000-9000ppm sodium hypochlorite disinfectant to minimize long-term operational expenses.
Safe & Reliable: Equipped with hydrogen exhaust fan, hydrogen alarm, and multiple safety protections (overtemperature, low liquid level, undervoltage); no explosion risks, compliant with industrial safety standards.
Customizable Configuration: Supports output customization for >20000g/h needs; dimensions and weight can be adjusted based on on-site working conditions.
Application Scenarios
Large-scale waterworks (urban/rural centralized water supply)
Municipal sewage treatment plants and reclaimed water reuse projects
Industrial circulating water disinfection (power plants, chemical plants, steel mills)
Large-scale aquaculture and food processing industry water treatment
High-standard wastewater treatment (pharmaceutical, printing and dyeing, petrochemical industries)
Regional centralized sewage treatment projects
Remarks
Standard parameters are ready for direct selection; customization is available for special output requirements (>20000g/h).
Equipment dimensions and weight are reference values, adjustable according to on-site installation space and process needs.
External salt dissolving tanks are supported for one-time salt addition and long-term use, reducing daily maintenance workload.
Raw materials (industrial salt and water) are readily available, with no need for special approval for procurement and storage.
GET A QUOTE
For project-specific solutions, technical drawings, or competitive pricing, contact our professional team now!
