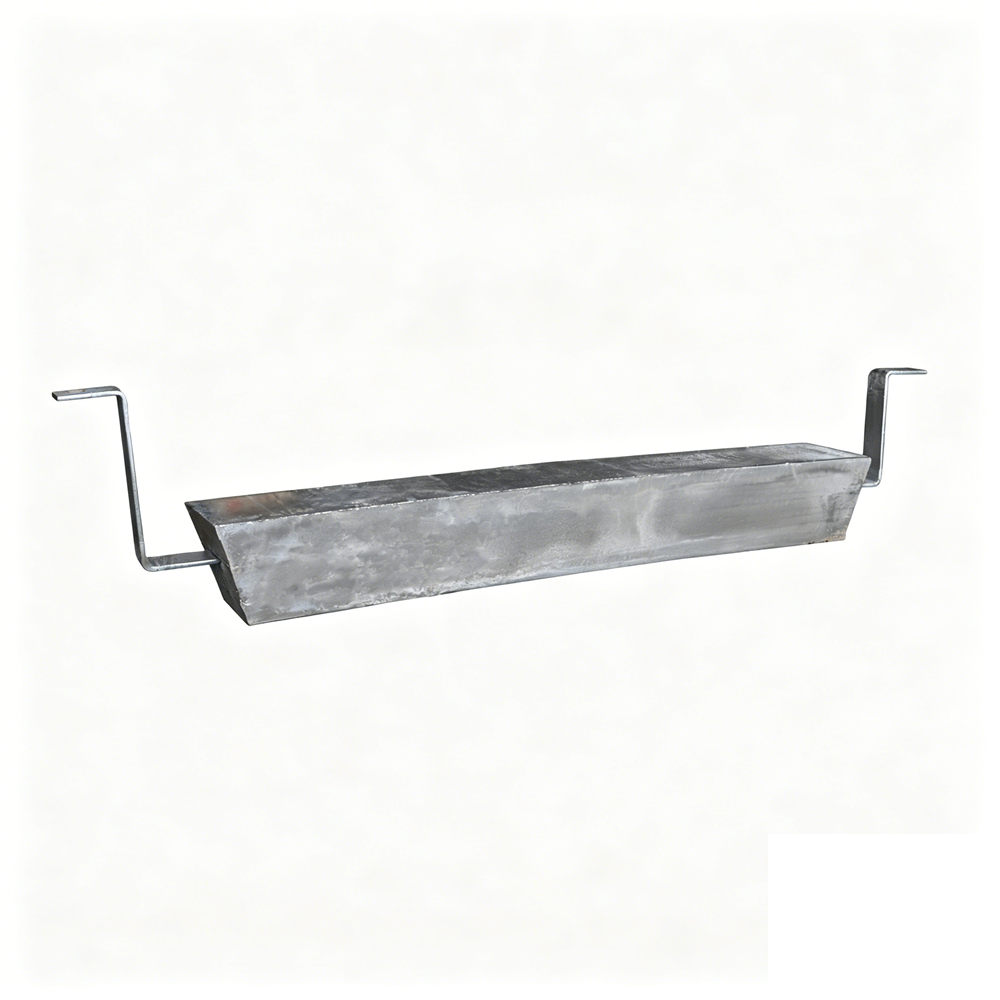

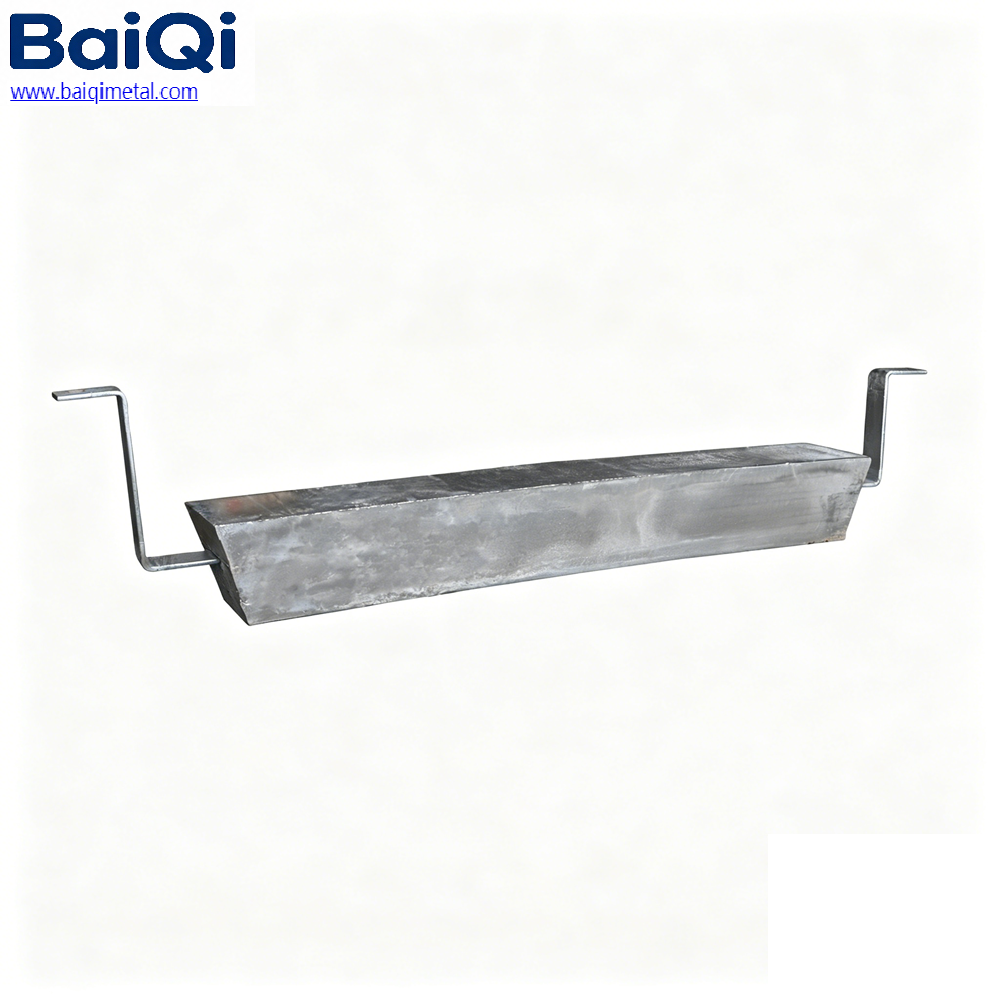

Liquid Tank Double-Foot Welded Zinc Anode (Flat Steel Foot)

Name: Liquid Tank Double-Foot Welded Zinc Anode (Flat Steel Foot)
Brand: BaiQi Metal
Availability: InStock
Rating: 5 (1 reviews)

Our liquid tank double-foot welded zinc anodes are high-performance sacrificial anodes specially designed for ship liquid tanks, providing reliable cathodic protection for steel tank structures against seawater corrosion. Manufactured with high-purity zinc alloy and precision welded flat steel feet, they feature stable electrochemical performance, long service life, and easy on-site installation, fully complying with marine engineering standards.

GET A QUOTE

Description

Core Advantages

✅ High-Purity Zinc Alloy: Excellent sacrificial protection performance, effectively preventing corrosion of ship liquid tank steel structures
✅ Welded Flat Steel Foot Design: Secure on-site welding installation, firm fixation, no loose connection
✅ Full Size Coverage: 4 series of standard models, covering different tank size and protection current requirements
✅ Stable Electrochemical Performance: Uniform current distribution, long service life, low consumption rate
✅ Marine-Grade Quality: Suitable for harsh marine environments, resistant to seawater erosion

Technical Specifications

Model	Specification (mm) $l \times (b_{1} + b_{2}) \times h$	Iron Foot Dimensions (mm)					Net Weight (kg)	Gross Weight (kg)
		$l_{0}$	$b_{0}$	$h_{0}$	$g$	$h_{1}$
Z1TS-1 Z2TS-1 Z3TS-1	$500 \times (115 + 135) \times 130$	800	50	6	40	60	53.5	56.0
Z1TS-2 Z2TS-2 Z3TS-2	$500 \times (110 + 130) \times 120$	800	50	6	40	60	48.0	50.0
Z1TS-3 Z2TS-3 Z3TS-3	$250 \times (85 + 100) \times 85$	310	30	4	6~8	0	12.8	13.0
Z1TS-4 Z2TS-4 Z3TS-4	$200 \times (70 + 90) \times 70$	260	30	3	6~8	0	7.3	7.5

Structure Diagram

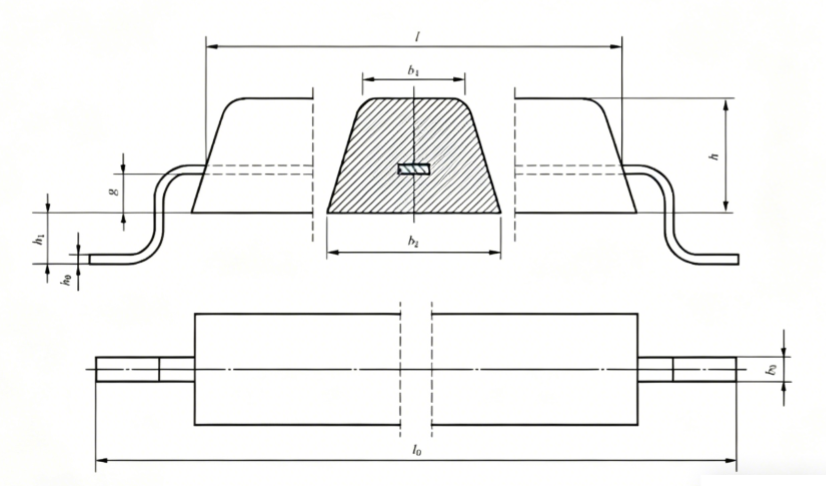

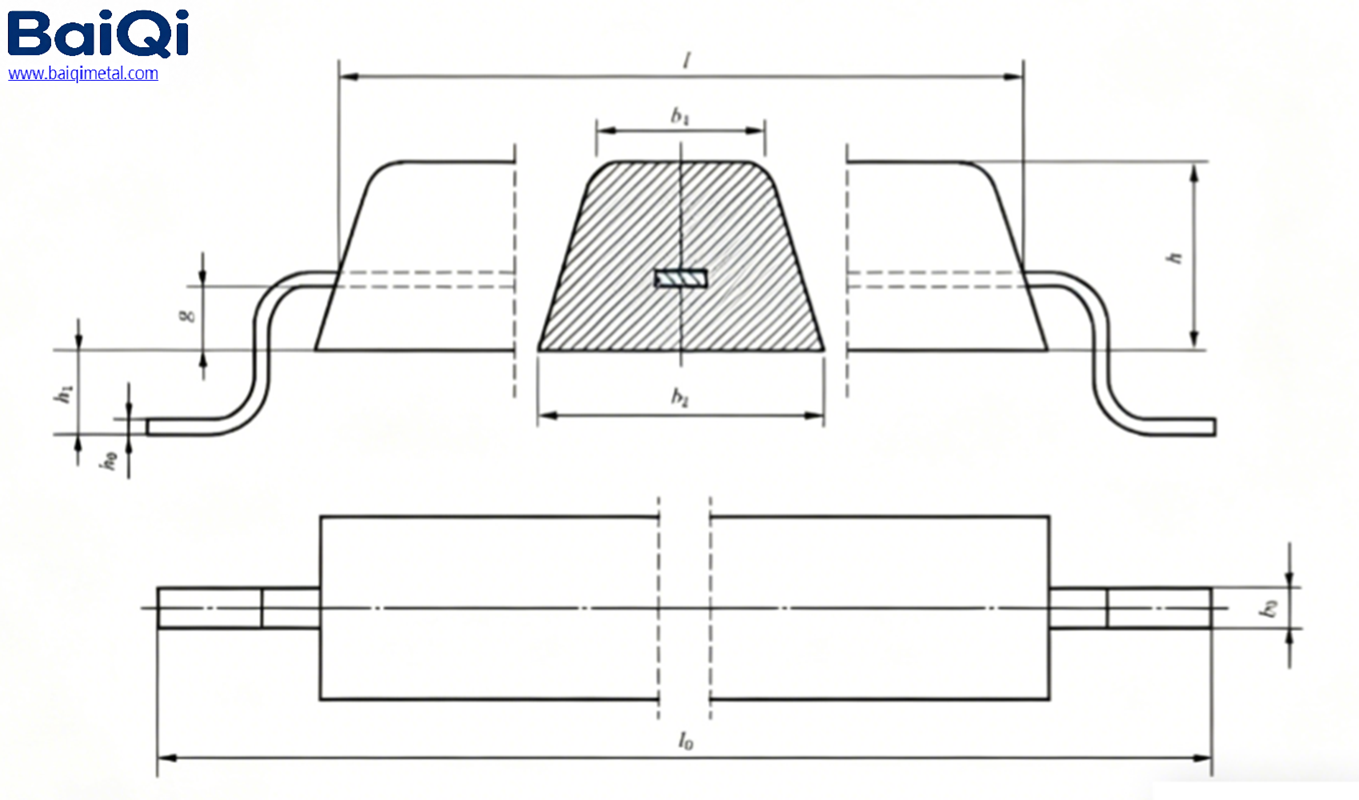

Figure 4: Structural Schematic of Liquid Tank Double-Foot Welded Zinc Anode (Flat Steel Foot)

Core zinc anode body with flat steel welded foot for direct on-site welding installation
Optimized size design for easy installation in ship liquid tanks, ballast tanks, and other marine structures

Application Scenarios

✅ Ship liquid tanks, ballast tanks, seawater tanks
✅ Marine engineering, offshore platforms, port facilities
✅ Shipbuilding and repair, marine corrosion protection projects
✅ Other steel structures requiring cathodic protection in liquid environments

Customization Service

Support custom model, size, weight and structure according to ship tank design requirements, to meet different ship types and engineering needs.
