BaiQi magnesium ribbon anode is a high-performance cathodic protection solution for pipelines and metallic structures. Ideal for high-resistivity environments, it delivers reliable corrosion prevention for pipelines, storage tanks, pipe networks, and grounding grids against strong electrical interference, plus temporary and casing protection.
Core Advantages
Chemical Composition
|
Element |
Content (%) |
|
Aluminum (Al) |
0.010 max. |
|
Manganese (Mn) |
0.500 ~ 1.300 |
|
Zinc (Zn) |
— |
|
Silicon (Si) |
0.050 max. |
|
Copper (Cu) |
0.020 max. |
|
Iron (Fe) |
0.030 max. |
|
Nickel (Ni) |
0.001 max. |
|
Single Impurity |
0.050 max. |
|
Other Impurities |
0.300 max. |
|
Magnesium (Mg) |
Remainder |
|
Parameter |
Specification |
|
Anode Size |

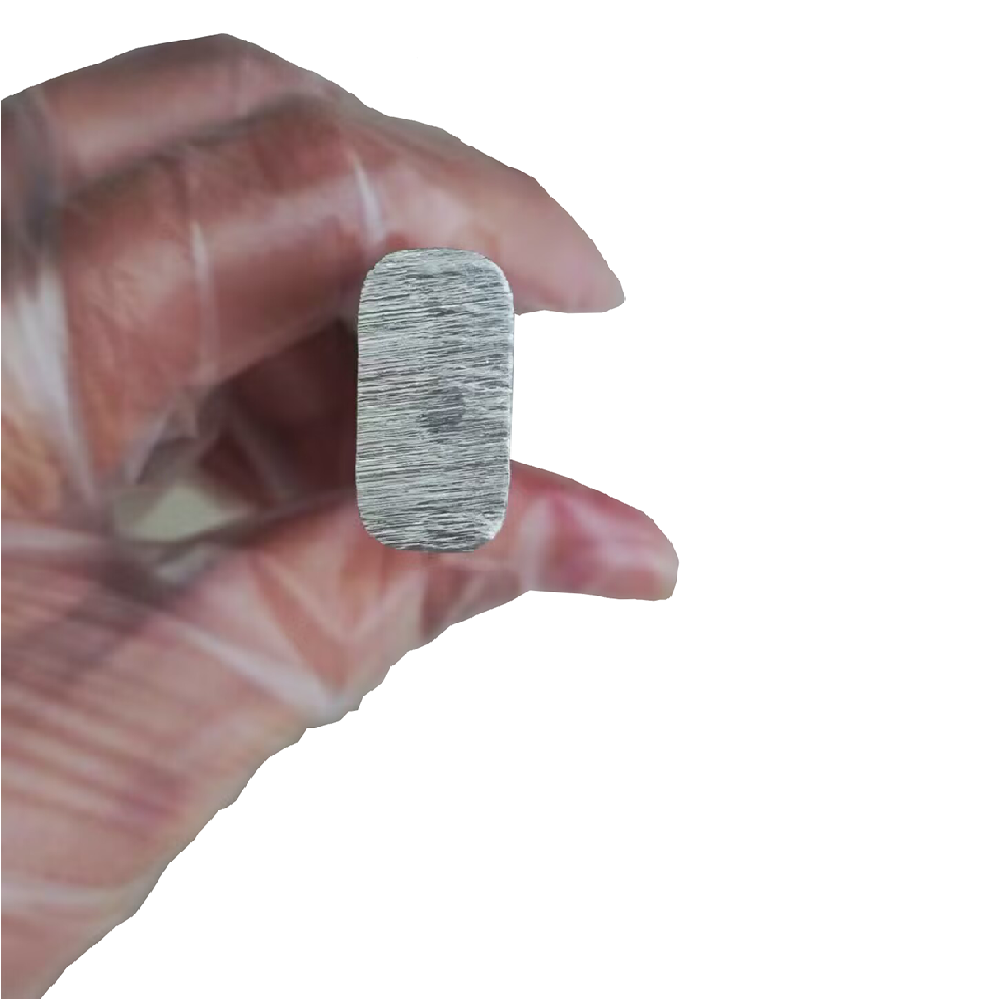

3/8” (9.5mm) × 3/4” (19mm) ±0.015” rectangle, 1/8” radius corners |
|
Core Wire Diameter |
0.135” |
|
Centrality Core Wire |
< 1/16” |
|
Approx. Weight |
0.243 lb./ft |
|
Packaging Availability |

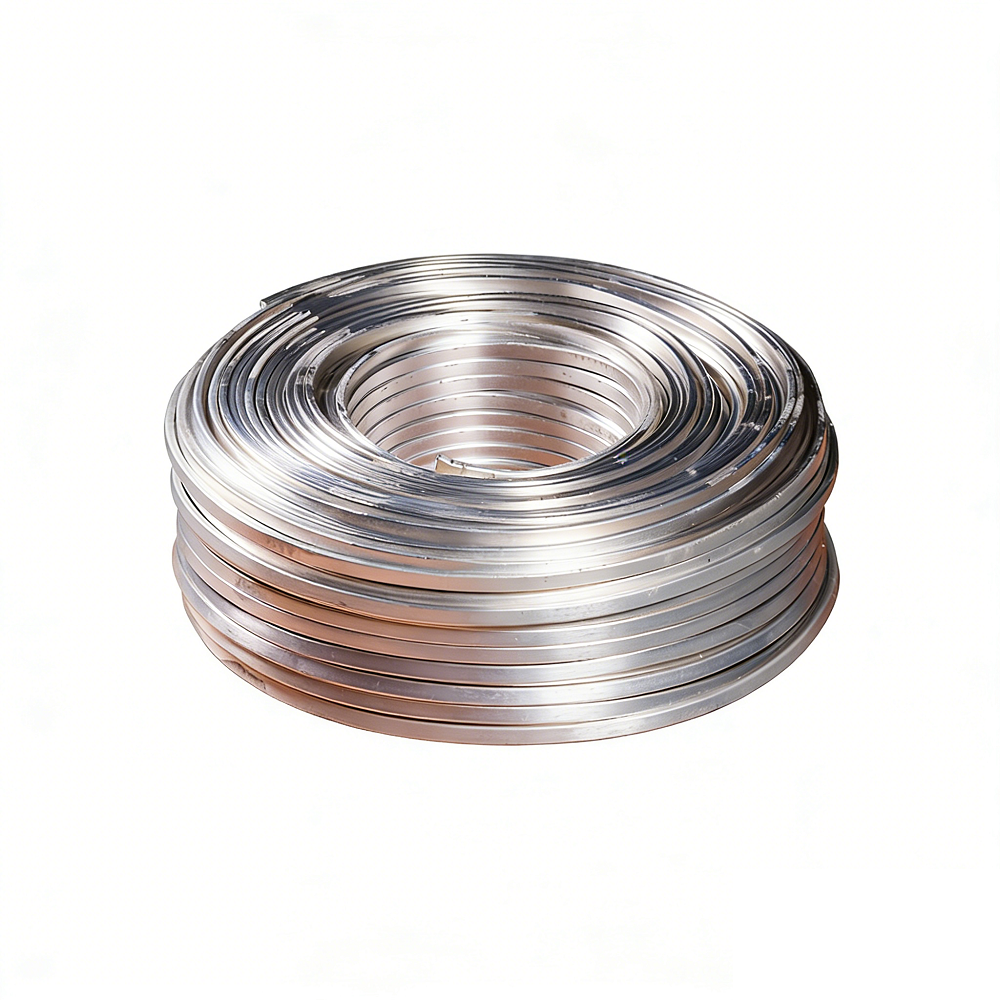

1,000ft rolls or cut to length |
|
Potential |
-1.7V (Cu/CuSO₄) |
|
Capacity |
Min. 500 Amp hrs/lb |
|
Typical Current in Seawater |
0.73 amps/ft |
|
Typical Current in Soil (5,000 ohm·cm) |
3 milliamps/ft |
|
Typical Current in Water (15,000 ohm·cm) |
0.9 milliamps/ft |
