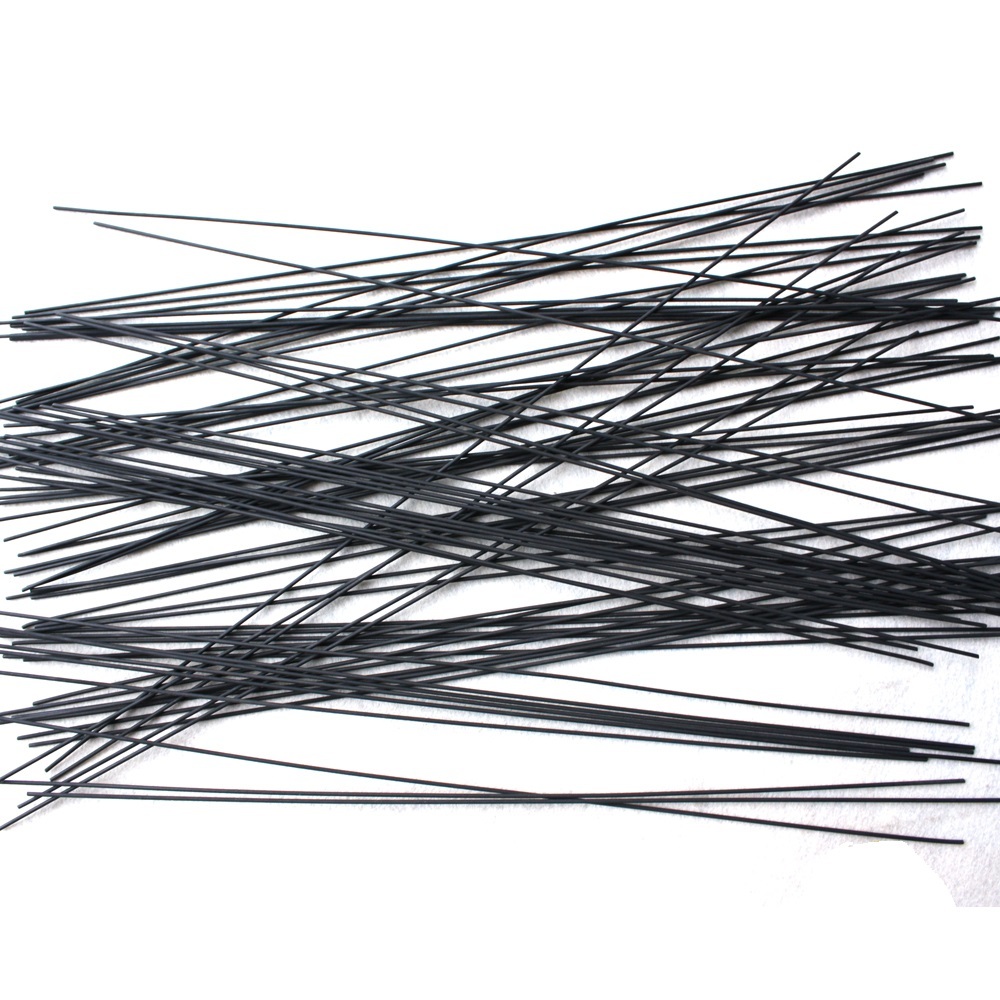

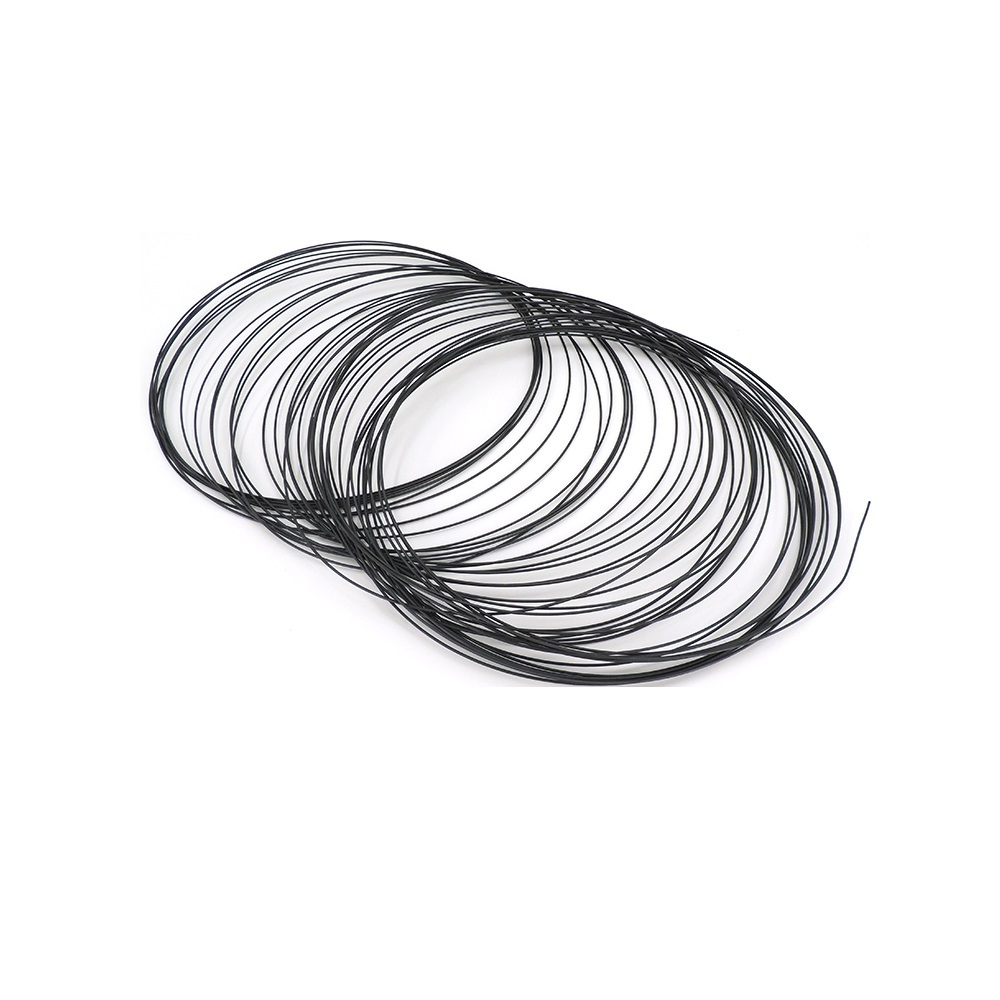

Our MMO wire anodes are designed for flexible installation, suitable for direct burial in fine sand or carbonaceous backfill, as well as long-term immersion in freshwater or saline water. Their versatile application scenarios include:
1. Wrapping around pipelines to deliver continuous and close-proximity cathodic protection.
2. Prepacked with coke breeze in canisters for deep well anode installation.
3. Connected to a feed cable at one end or assembled in a piggyback configuration to form a continuous anode system, ideal for under-tank protection.
4. Protecting the internal surfaces of water tanks, where their malleable properties ensure uniform current distribution even in areas with significant water level fluctuations.
|
Element |
Grade I (Max. Content) |
Grade II (Max. Content) |
|
Iron (Fe) |
0.20% |
0.30% |
|
Carbon (C) |
0.08% |
0.08% |
|
Nitrogen (N) |
0.03% |
0.03% |
|
Hydrogen (H) |
0.015% |
0.015% |
|
Oxygen (O) |
0.18% |
0.25% |
|
Single Impurity (Each) |
0.10% |
0.10% |
|
Other Impurities (Total) |
0.40% |
0.40% |
|
Titanium (Ti) |
Remainder |
Remainder |
|
Technical Parameter |
Ir–Ta Mixed Metal Oxide Catalyst |
Ir–Ru Mixed Metal Oxide Catalyst |
|
Coating Composition |
IrO₂, Ta₂O₅ |
IrO₂, RuO₂ |
|
Coating Thickness |
0.5~1 μm |
0.5~1 μm |
|
Coating Uniformity |
Min. 85% |
Min. 85% |
|
Recommended Working Environment |
Fine sand, coke breeze, freshwater |
Mud, concrete, seawater, high-acidity media, chlorine/oxygen-containing environments |
Note: We offer tailored anode production services, with adjustable noble metal oxide ratios and coating thickness to meet clients’ specific demands.
|
Medium |
Lifetime |
Current Density (mA/m) - Ø1 mm |
Current Density (mA/m) - Ø1.5 mm |
Current Density (mA/m) - Ø3 mm |
|
Soil |
20 yrs. |
52 (16 mA/ft.) |
79 (24 mA/ft.) |
157 (48 mA/ft.) |
|
|
30 yrs. |
35 (11 mA/ft.) |
53 (16 mA/ft.) |
105 (32 mA/ft.) |
|
|
50 yrs. |
21 (6 mA/ft.) |
32 (10 mA/ft.) |
63 (19 mA/ft.) |
|
Coke Breeze |
20 yrs. |
320 (97 mA/ft.) |
480 (146 mA/ft.) |
960 (291 mA/ft.) |
|
|
30 yrs. |
213 (65 mA/ft.) |
320 (97 mA/ft.) |
640 (194 mA/ft.) |
|
|
50 yrs. |
128 (39 mA/ft.) |
192 (58 mA/ft.) |
384 (116 mA/ft.) |
|
Fresh Water |
20 yrs. |
452 (138 mA/ft.) |
672 (205 mA/ft.) |
1345 (410 mA/ft.) |
|
|
30 yrs. |
300 (91 mA/ft.) |
445 (136 mA/ft.) |
889 (271 mA/ft.) |
|
|
50 yrs. |
181 (55 mA/ft.) |
265 (81 mA/ft.) |
535 (163 mA/ft.) |
|
Seawater |
20 yrs. |
805 (245 mA/ft.) |
1210 (369 mA/ft.) |
2350 (716 mA/ft.) |
|
|
30 yrs. |
530 (162 mA/ft.) |
811 (247 mA/ft.) |
1598 (487 mA/ft.) |
|
|
50 yrs. |
325 (99 mA/ft.) |
475 (145 mA/ft.) |
955 (291 mA/ft.) |
