1.Substrate material: ASTM B 265GR1
2.Specifications: Available in various width, thickness to fit different industrial requirements
3.Coating: Coated with ruthenium and iridium, with a service life more than 20 years
4.Coating thickness: 8-15μm, perfecting the overall effectiveness of the anode
5.Operating temperature: 10°C to 60°C
6.Advantage highlights: long life, low energy consumption, low comprehensive use cost, high cost performance
7.Application: Used for cathodic protection for corrosion prevention in seawater environment
Product Description

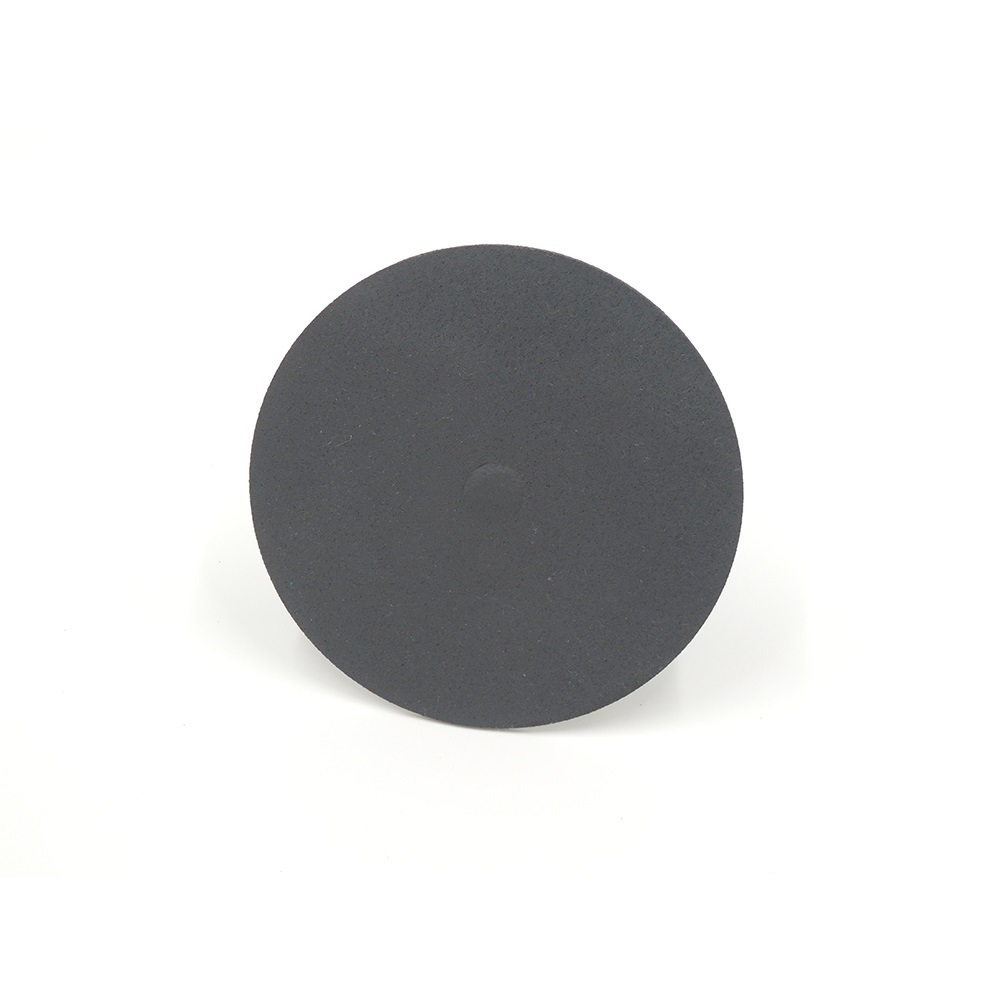

MMO (Mixed Metal Oxide) anode plates are widely used in various industries for cathodic protection applications. They provide effective and long-lasting protection against corrosion in a wide range of environments. The MMO anode plate offered by TJNE are known for their high quality and excellent performance.The plates can be customized in various sizes and shapes to suit different applications. Our products are designed with precision, using advanced technology and quality materials, ensuring reliable and efficient corrosion protection. The MMO anode plate consist of a titanium substrate with a mixed metal oxide coating. The coating is carefully applied to achieve optimal performance and adhesion to the titanium substrate.
Specification
Substrate Material：Commercially Pure Titanium (Gr1 or Gr2)
Active Coating：Mixed Metal Oxide (RuO₂-IrO₂ based or custom blends)
Standard Shapes：Circular Disc, Rectangular Plate, Custom Shapes
Standard Dimensions：Discs: 10mm - 50mm thick, 50mm - 500mm diameter.
Plates: Custom sizes available.
Connection：Titanium Stub or Bar (standard lengths available; custom lengths on request)
Operating Environment：Fresh Water, Seawater, Carbonaceous Backfill, Concrete
Max. Current Density：Up to 600 A/m² in seawater, 100 A/m² in fresh water (varies with coating)
Coating Quality Check：Meets NACE TM0298-2018 or equivalent standards
Applications：
Water Storage Tanks (Potable water, fire water, wastewater)
Pipelines & Flowlines (Buried or submerged sections)
Water & Wastewater Treatment Plants (Clarifiers, basins, reactors)
Marine Structures (Ship hulls, docks, piers, offshore platforms)
Condensers & Heat Exchangers
Steel-Reinforced Concrete Structures (Bridge piers, parking garages, jetties)
