1.Substrate material: ASTM B265 Grade1
2.Coating: Mixed mental oxide of iridium and tantalum, in line with NACE Standard TM0108-2008
3.Accelerated life testing: More than 50h in 1mol/l Na2SO4, 15000A/m2
4.Specification: The length and aperture size of the anode can be customized according to customer requirements
5.Application: Suitable for cathodic protection project of reinforced concrete structures, such as steel piles for cross-sea bridges.
6.Service: Providing substrate composition detection; process inspection (machining size, sandblasting particle size, pre-treatment surface condition, etc.); finished product testing (accelerated life testing, coating bonding strength testing, coating thickness testing, etc.)
Product Description

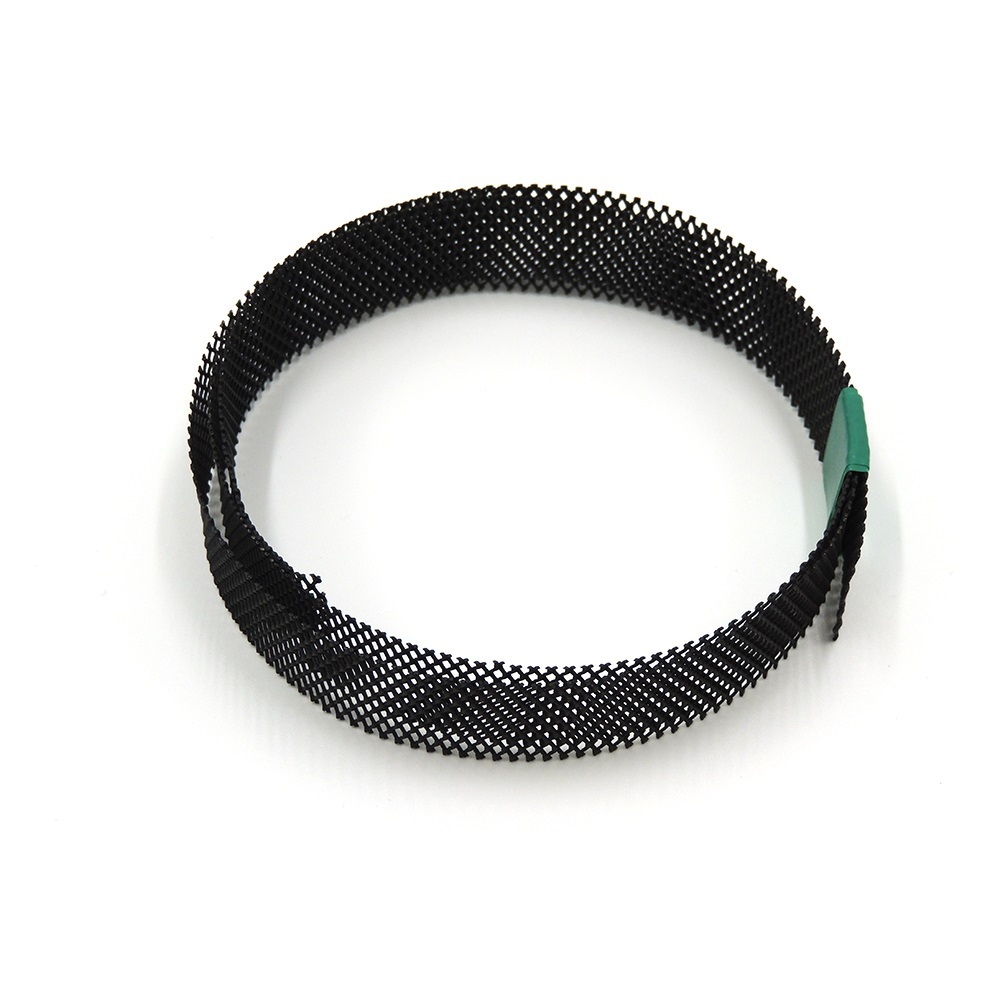

MMO Titanium Mesh Anode is a revolutionary product designed for various applications. It combines advanced technology and exceptional performance to provide superior results. This product is manufactured and supplied by BaiQi, a professional MMO manufacturer and supplier. With strong technical expertise, comprehensive after-sales service, complete certification and testing reports, fast delivery, reliable packaging, and support for testing, BaiQi is the go-to choice for customers in need of you. MMO Titanium Mesh Anode is a belt-type MMO anode that utilizes a unique chemistry and reaction principle to deliver efficient and long-lasting protection against corrosion. It features a highly conductive titanium substrate coated with a mixed metal oxide (MMO) catalyst. This catalyst activates the electrochemical reaction, preventing corrosion on various structures and equipment.
Anode Dimension &Properties
|
Size |
Thickness |
Current rating* |
Mesh Diamond |
Weight/Roll |
Surface Area(m2) |
|
10mm x76m |
1.3mm |
2.8mA/m |
2.5 x4.6 x0.6mm |
1.4kg |
1.85 |
|
13mm x76m |
1.3mm |
3.5mA/m |
2.5 x4.6 x0.6mm |
1.8kg |
2.4 |
|
19mm x76m |
1.3mm |
5.28mA/m |
2.5 x4.6 x 0.6mm |
2.7kg |
3.6 |
|
20mm x76m |
1.3mm |
5.6mA/m |
2.5 x4.6 x 0.6mm |
2.8kg |
3.7 |
|
25mm x76m |
1.3mm |
7.0mA/m |
2.5 x4.6 x 0.6mm |
3.5kg |
4.63 |
|
1220mm x76m |
1.98mm |
37.8mA/m |
25 x50 x0.89mm |
43kg |
92.9 |
|
1220mmx76m |
1.98mm |
24.4mA/m |
34x76 x0.89mm |
33kg |
92.9 |
Application
MMO Titanium Mesh Anode have become an important technology for cathodic protection and corrosion prevention in major industries.
