1.Substrate: ASTM B265 GR1
2.Parameters of MMO coating: In soil, freshwater environment, the coating is IrO2/Ta2O5 and in seawater environment the coating is IrO2/Ta2O5/Ru2O3; MMO coating thickness is ≥6g/m2; MMO coating resistance (mohm×cm) is 0.0056
3.Parameters of anode: anode consumption rate is less than ≤6mg/A×a; anode resistance is less than 0.007ohm·cm
4.Advantages and features: Easy to install, can be installed directly through the wall from the outside; mall size, lightweight, stable performance, and strong corrosion resistance
5.Applicable scenarios: Probe-type anodes are mainly used in impressed current cathodic protection systems on the inner surfaces of pipelines, water tanks, pressure vessels, etc.

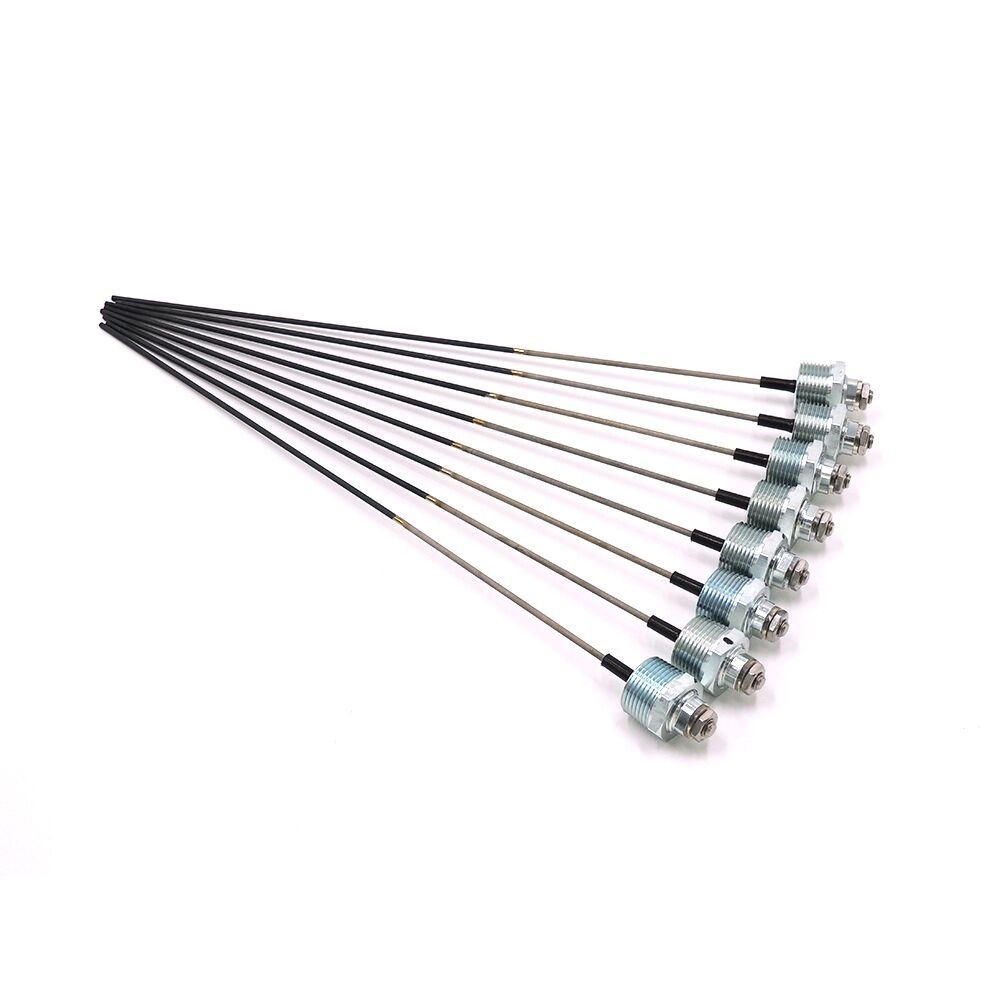

The MMO Titanium Probe Anode features a titanium substrate with a mixed-metal oxide (MMO) coating. Designed for direct insertion into corrosion-prone media, the MMO coating offers a large specific surface area to ensure efficient electrochemical reactions.

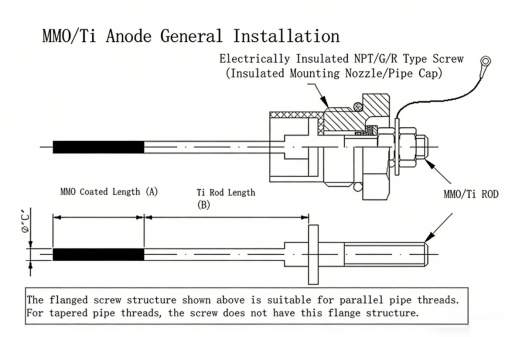

Constructed with an MMO rod anode core, it adopts a multi-layer sealing system (water stop valve, O-ring, and epoxy resin) for high-pressure service compatibility. The stainless steel housing undergoes waterproof sealing and comprehensive testing (seal integrity + electrical resistance) to meet design specifications.
Key Advantages:
Titanium substrate + MMO coating delivers superior electrocatalytic performance, ideal for critical corrosion protection applications
Multi-layer sealing eliminates leakage risks; enhanced dielectric insulation, durability, and safety
Customizable output parameters and service life to meet personalized performance requirements|
For Glass-lined Mild Steel Tank |
Input |
Potential Controller |
Tank Volume |
MMO-Ti Anode |
Installation Screw |
|
AC 110 ~ 260V |
ME200 |
50 ~ 200 L |
Ti200 |
R3/4 G3/4 NPT3/4-14 |
|
|
ME400 |
200 ~ 500 L |
Ti400 |
|||
|
ME800 |
500 ~ 1000 L |
Ti800 |
|||
|
For Stainless Steel Tank |
AC 110 ~ 260V |
MT400 |
50 ~ 200 L |
Ti400 |
|
|
MT800 |
200 ~ 1000 L |
Ti800 |
