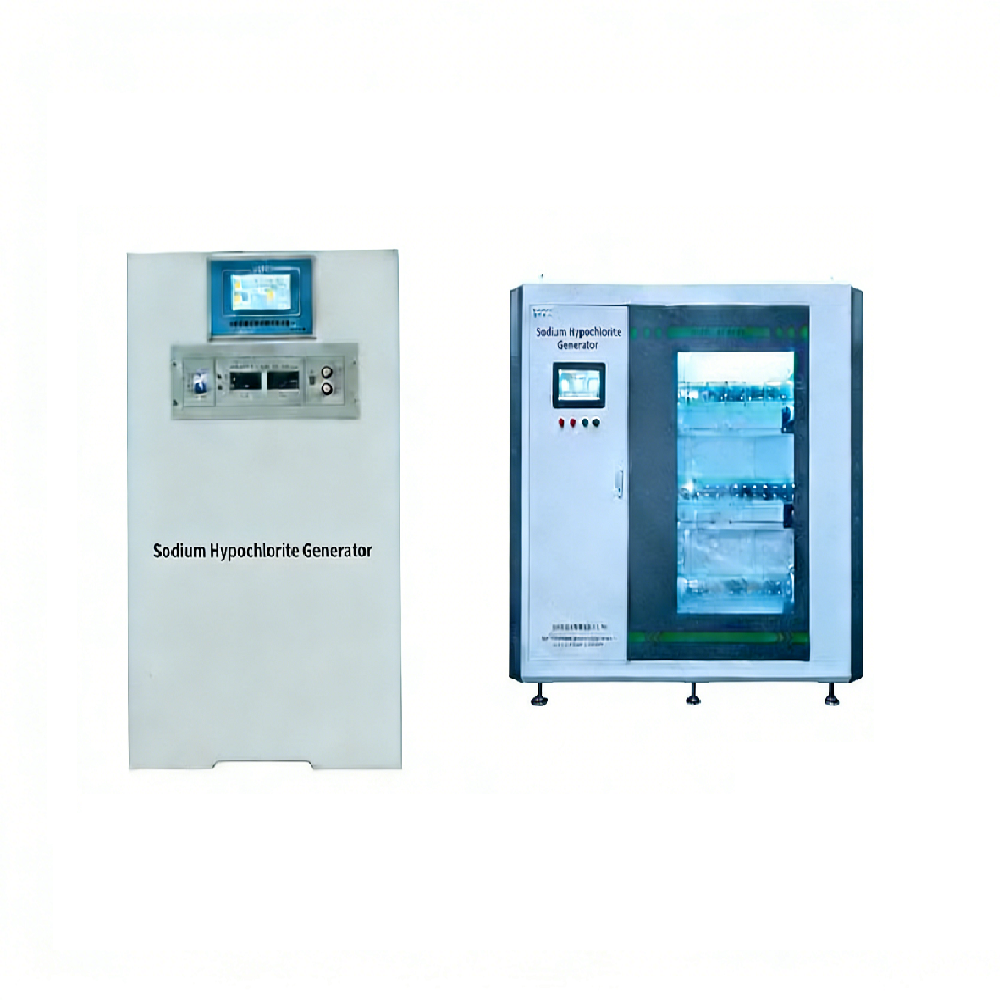

Small-Sized Sodium Hypochlorite Generator

Name: Small-Sized Sodium Hypochlorite Generator
Brand: BaiQi Metal
Availability: InStock
Rating: 5 (1 reviews)

BaiQi Small-Sized Sodium Hypochlorite Generator (0-500g/h available chlorine output) is a compact, intelligent disinfection solution tailored for small to medium-scale water treatment needs. With an all-in-one integrated design, it combines ease of operation, low energy consumption, and reliable performance—ideal for scenarios requiring flexible, unattended disinfection.

GET A QUOTE

Description

Technical Specifications

Model	Available Chlorine Output (g/h)	Total Installed Power (kW)	Main Unit Dimensions (L×W×H, mm)	Weight (kg)
YS-CL-50	50	3.2	1300×600×1400	65
YS-CL-100	100	3.2	1300×650×1400	85
YS-CL-200	200	4.0	1500×650×1400	125
YS-CL-300	300	4.0	1500×650×1400	125
YS-CL-400	400	4.5	1500×650×1400	165
YS-CL-500	500	4.5	1500×650×1400	185

Core Features

Intelligent Integrated Design: All-in-one main unit requires no additional external components, saving installation space and simplifying setup.
Visual Operation: Transparent electrolytic cell allows real-time monitoring of the electrolysis process, ensuring operational safety.
Stable Power Supply: Independently developed high-frequency constant current power supply (100% load, current deviation <1%) guarantees consistent disinfection performance.
Low Operating Cost: Produces 1kg of available chlorine with only 3.5kg of salt and 4.5kW·h of electricity, generating 6000-9000ppm sodium hypochlorite disinfectant.
Unattended Support: Static saturated brine preparation (one-time salt addition for long-term use) and Ethernet communication enable 24/7 unattended operation.
Multiple Protections: Equipped with interlock detection for flow rate, concentration, pressure, and hydrogen levels, ensuring safe and reliable operation.

Application Scenarios

Waterworks (small to medium-sized) and rural drinking water disinfection
Secondary water supply (hotels, office buildings, high-rise residences)
Small-scale sewage treatment (rural sewage, hospital wastewater, food processing wastewater)
Swimming pools, kindergartens, and small commercial venue disinfection
Laboratory and medical device disinfection pipelines

Remarks

Standard dimensions are for reference; customization is available based on on-site space and installation requirements.
External salt dissolving tanks can be configured to reduce frequent salt addition workload.
Raw materials are readily available (only industrial salt and water), with no need for hazardous chemical storage or special approval.

GET A QUOTE

For customized solutions, technical support, or competitive pricing, contact us now!
