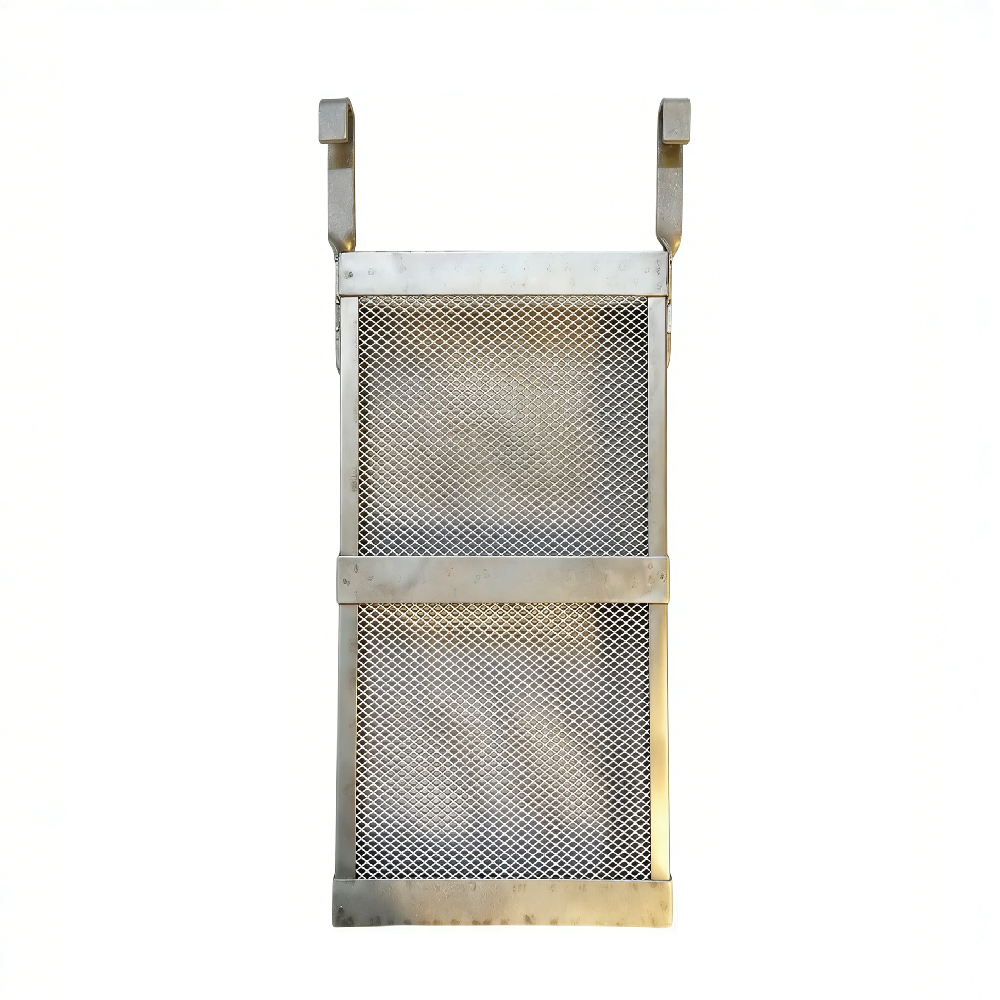

A titanium basket is a specialized anode hanger for electroplating equipment. For nickel plating, it holds nickel cakes as the anode; for copper plating, it contains copper balls as the anode, with the workpiece as the cathode. When direct current is applied, the anodic material dissolves to supply metal ions, while titanium’s exceptional stability keeps it inert and undissolved—making it the preferred choice for anode hangers in electroplating.
Specification:
|
Product name |
Titanium anode baskets,Titanium baskets for anodizing,Titanium baskets electroplating,titanium baskets for plating,Titanium anodizing baskets,Titanium anode baskets |
|
Material |
Pure titanium |
|
Grade |
Gr1,Gr2 |
|
Common Size |
Length x Width x Thickness |
|
400x120x50mm,500x130x55mm,600x150x55mm, |
|
|
700x175x60mm, 800x195x60mm,900x215x65mm, |
|
|
1000x250x65mm,1400x300x50mm,etc. |
|
|
Production Method |
Cutting, welding, bending |
|
Features |
Toughness, light weight,Stability dimension |
|
Lower electricity consumption, high catalytic |
|
|
Strong corrosion resistance, long working life |
|
|
High property of acid and alkali resistance, |
|
|
Bear high & low temperature, etc. |
|
|
Applications |
Electroplating industry, such as |
|
(1)Precious metal plating(Ag, Au, Rh, Pd) |
|
|
(2)Hard chrome plating(Cr6+) |
|
|
(3)Base metal plating(Cu, Zn, Ni) |
|
|
(4)Precious metal recovery, etc. |
