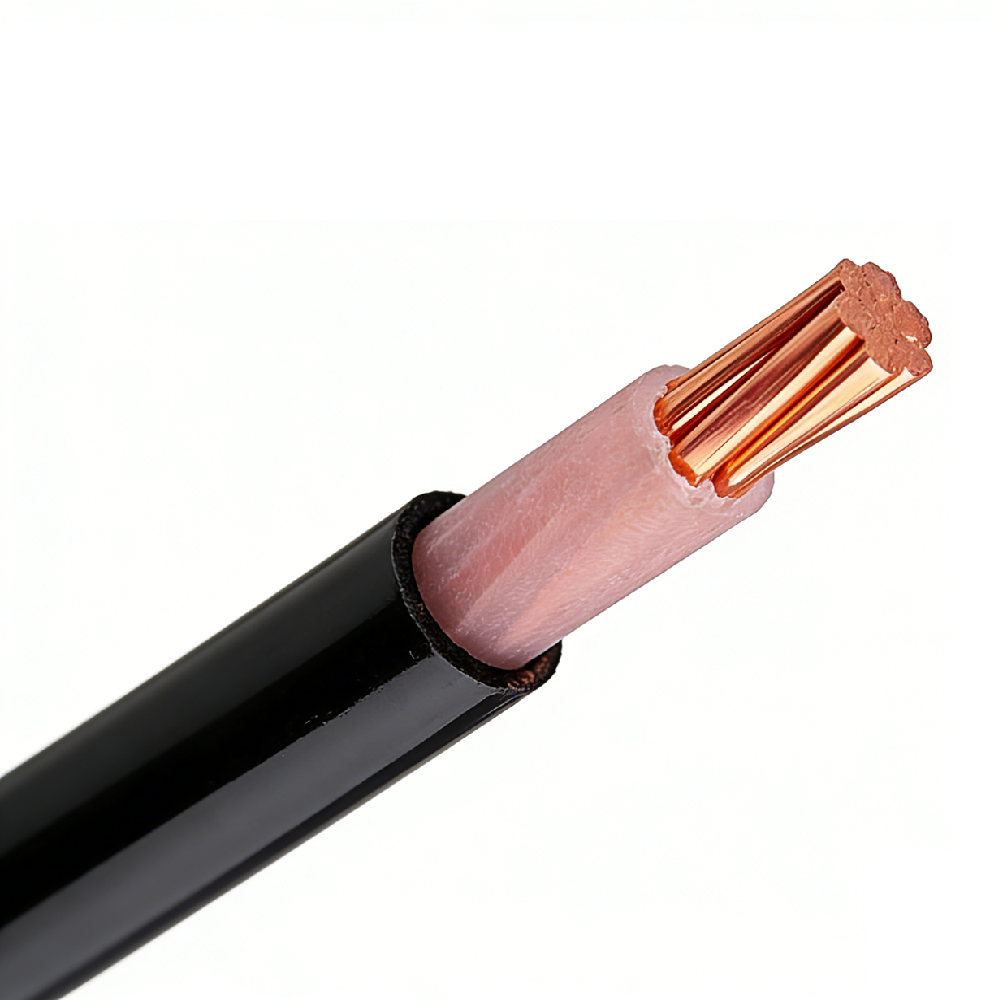

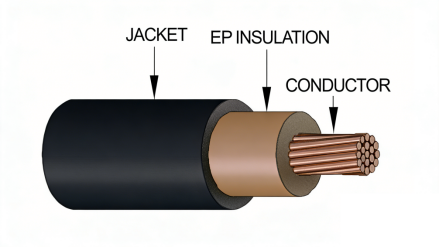

Single core XLPE insulated/PVC sheathed 600/1000V
Conductors:Plain annealed copper
Insulation:XLPE ( Cross linked polyvinyldene)
Sheath/Jacket:PVC(Polyviny-Chloride)
Colours:Black/Black,Red/Red
Voltage:600/1000V
Operating temperature:Maximum 90 °C,minimum bending 0°C
Standard:IEC60502
Minimum bending radius: Diameter up to 25mm,4 x OD;Diameter over 25mm,6 x OD of cable
The XLPE/PVC cable stands as the most widely utilized cable in cathodic protection systems, featuring a copper conductor encapsulated by an XLPE insulation layer. Boasting exceptional chemical resistance and superior low-temperature tolerance, the XLPE insulation ensures reliable performance in harsh operating environments. Complemented by a PVC outer jacket, the cable further delivers enhanced dielectric strength, robust waterproofing capabilities, and excellent flame retardancy—critical attributes for long-term durability in cathodic protection applications.
Specification:
|
Size (mm²) |
Maximum Dia Over Conductor (mm) |
RT of Insulation (mm) |
Dia over Core (mm) |
RT of Sheath (mm) |
Nominal Overall Dia (mm) |
Weight (Kg/Km) |
|
6 |
3.12 |
0.7 |
4.5 |
1.4 |
7.3 |
104 |
|
10 |
4.05 |
0.7 |
5.5 |
1.4 |
8.3 |
150 |
|
16 |
5.10 |
0.7 |
6.5 |
1.4 |
9.3 |
214 |
|
25 |
6.40 |
0.9 |
8.2 |
1.4 |
11.0 |
317 |
|
35 |
7.50 |
0.9 |
9.3 |
1.4 |
12.1 |
420 |
|
50 |
8.90 |
1.0 |
11.1 |
1.4 |
14.2 |
560 |
|
70 |
10.70 |
1.1 |
13.2 |
1.5 |
16.4 |
787 |
|
95 |
12.60 |
1.1 |
15.0 |
1.5 |
18.3 |
1050 |
