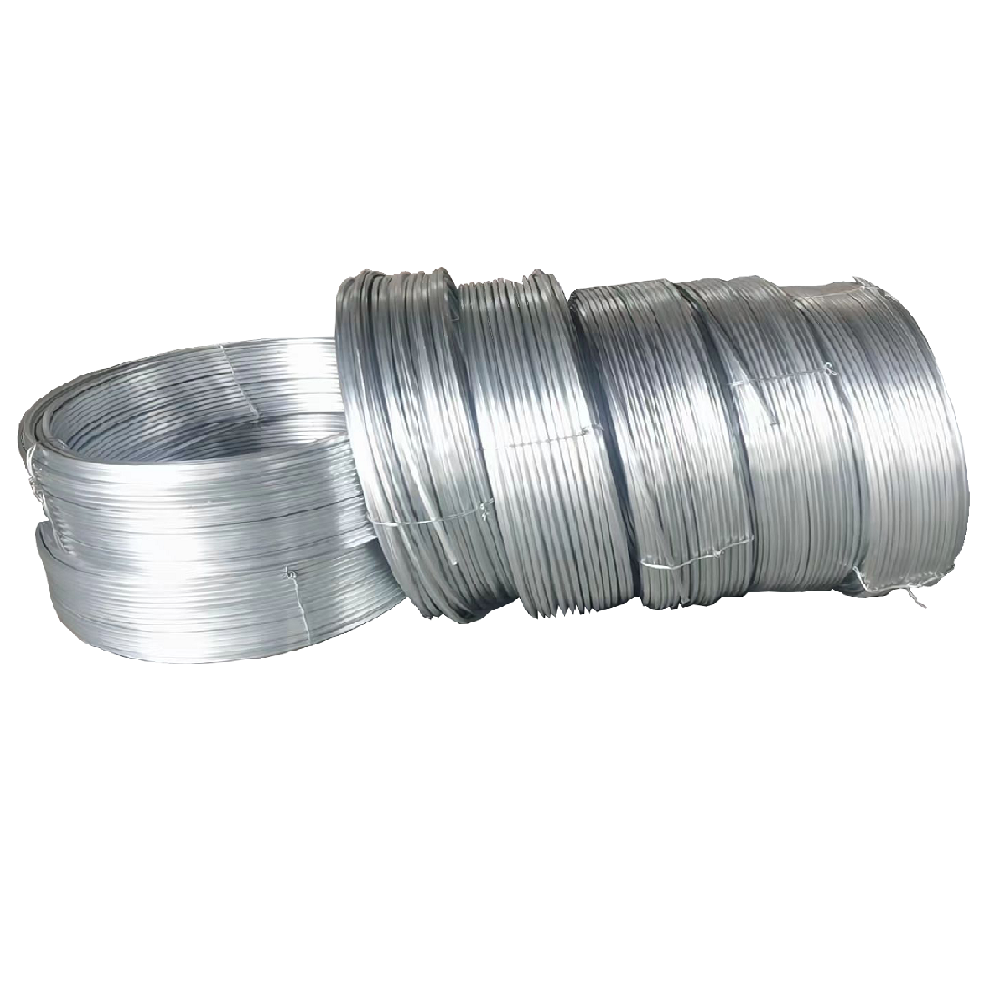

Zinc Ribbon Anode provide a very simple,cost effective,maintenance-free method of corrosion control for buried or immersed metals such as iron,Steel,Aluminium,Copper,etc.It is especially used for unattended application:those where other cathodic protection systems requiring monitoring and/or frequent maintenance cannot be possible.
Zinc ribbon anode can be used in fresh water, seawater environments, also can be used in underground structures.
Chemical Composition
|
Element |
ASTM – B418 Type I Content (%) |
ASTM – B418 Type II Content (%) |
|
Aluminum (Al) |
0.100 ~ 0.500 |
0.005 max. |
|
Lead (Pb) |
0.006 max. |
0.003 max. |
|
Iron (Fe) |
0.005 max. |
0.0014 max. |
|
Copper (Cu) |
0.005 max. |
0.002 max. |
|
Cadmium (Cd) |
0.025 ~ 0.070 |
0.003 max. |
|
Other Impurities |
0.100 max. |
0.100 max. |
|
Zinc (Zn) |
Remainder |
Remainder |
Electrochemical Performance
| Technical Measurement | ASTM-B418 Type I Performance | ASTM-B418 Type II Performance |
| Open Circuit Voltage (min.) | -1.05 Volts | -1.10 Volts |
| Closed Circuit Voltage (min.) | -1.00 Volts | -1.05 Volts |
| Current Capacity | 780 A·h/kg (354 A·h/lbs) | 740 A·h/kg (335 A·h/lbs) |
| Current Efficiency (min.) | 95% | 90% |
| Consumption Rate | 11.2 kg/A·y (24.8 lbs/A·y) | 11.9 kg/A·y (26.2 lbs/A·y) |
Specification
| Technical Specifications | Unit | Super | Plus | Standard | Small |
| Cross Section | Inches | 1"×1-1/4" | 5/8"×7/8" | 1/2"×9/16" | 11/32"×13/32" |
| Millimeters | 25.4×31.75 | 15.88×22.22 | 12.5×14.3 | 8.73×10.32 | |
| Weight | Pounds/foot | 2.47 | 1.2 | 0.6 | 0.25 |
| Kilograms/meter | 3.54 | 0.785 | 0.8925 | 0.372 | |
| Diameter of wire core | Inches | 0.185 | 0.135 | 0.130 | 0.115 |
| Millimeters | 4.70 | 3.43 | 3.30 | 2.92 | |
| Standard Coil | Feet | 100 | 200 | 500 | 1000 |
| Length | Meters | 30.5 | 61 | 152 | 305 |
Application
Our zinc ribbon anodes serve as a reliable solution for passive cathodic protection of metal structures operating in constrained spaces or high-resistivity environments. They are particularly well-suited for scenarios such as: underground carrier pipes housed inside protective sleeves; closely positioned pipeline grids; pipeline routes cutting through rocky, mountainous terrain; limited clearance between the inner and outer casings of oil/gas wells; the gap between the base of corroded legacy storage tanks and newly installed tank bottoms; and narrow spaces that demand a wrapped installation approach to safeguard steel structural components.
