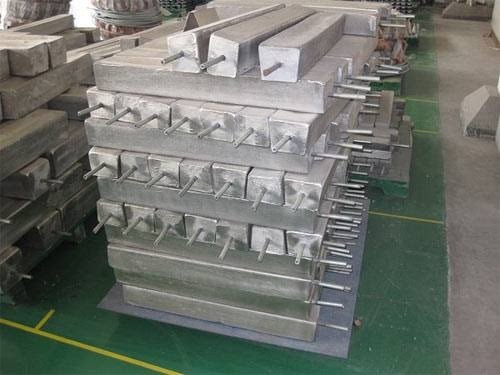

Our zinc sacrificial anodes are designed for galvanic cathodic protection of steel structures exposed to seawater and other electrolytic environments.

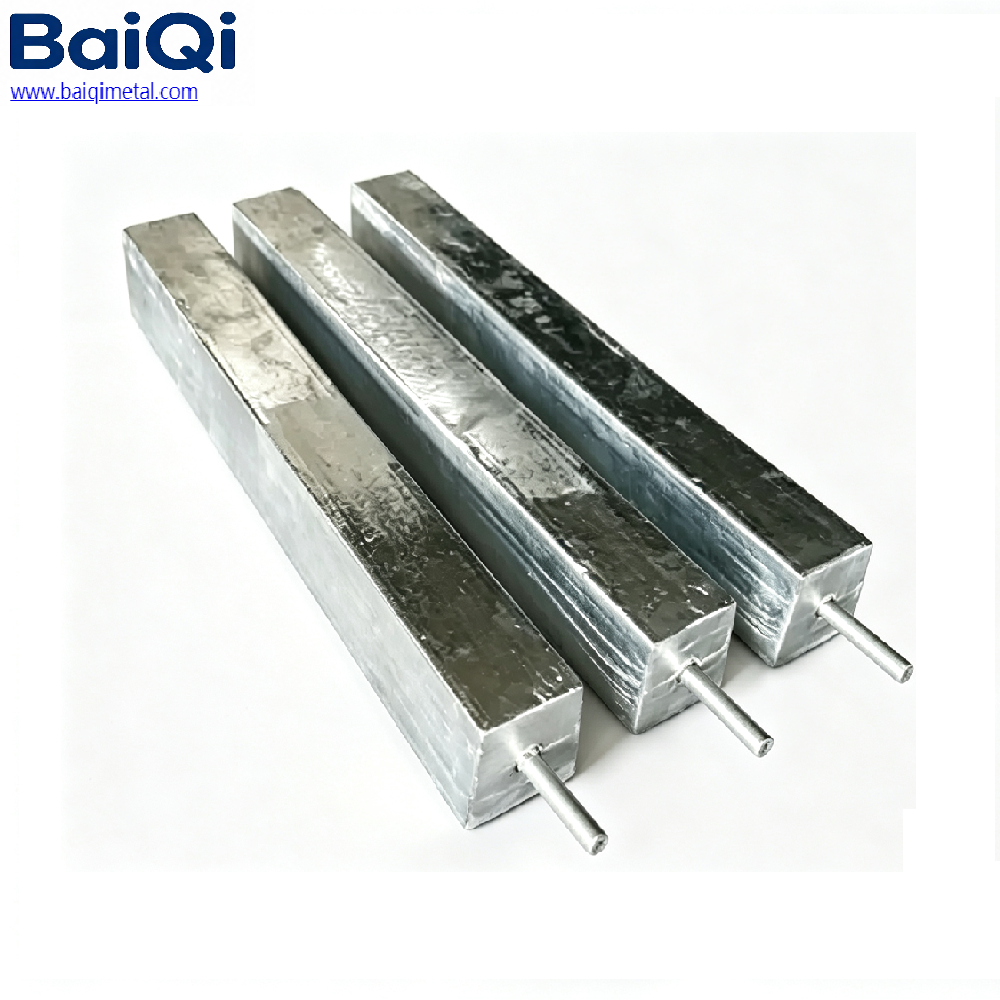

This zinc anode features a one-sided extended steel core, which provides a practical connection point for electrical bonding and mechanical installation. The steel core extends from one end of the zinc anode body and can be adapted to different installation requirements.
Zinc sacrificial anodes are commonly used to protect steel structures by acting as the sacrificial metal in a galvanic cathodic protection system.
|
Element |
ASTM – B418 Type I Content (%) |
ASTM – B418 Type II Content (%) |
|
Aluminum (Al) |
0.100 ~ 0.500 |
0.005 max. |
|
Lead (Pb) |
0.006 max. |
0.003 max. |
|
Iron (Fe) |
0.005 max. |
0.0014 max. |
|
Copper (Cu) |
0.005 max. |
0.002 max. |
|
Cadmium (Cd) |
0.025 ~ 0.070 |
0.003 max. |
|
Other Impurities |
0.100 max. |
0.100 max. |
|
Zinc (Zn) |
Remainder |
Remainder |
Electrochemical:
|
Technical Measurement |
ASTM-B418 Type I Performance |
ASTM-B418 Type II Performance |
|
Open Circuit Voltage (min.) |
-1.05 Volts |
-1.10 Volts |
|
Closed Circuit Voltage (min.) |
-1.00 Volts |
-1.05 Volts |
|
Current Capacity |
780 A·h/kg (354 A·h/lbs) |
740 A·h/kg (335 A·h/lbs) |
|
Current Efficiency (min.) |
95% |
90% |
|
Consumption Rate |
11.2 kg/A·y (24.8 lbs/A·y) |
11.9 kg/A·y (26.2 lbs/A·y) |
One-Sided Steel Core Extension
The extended steel core provides a convenient connection point for electrical bonding and installation.
Reliable Sacrificial Protection
The zinc anode is consumed preferentially to help protect connected steel structures from corrosion.
Flexible Installation
The steel core configuration can be customized according to the customer's mounting and connection requirements.
OEM Customization
Dimensions, zinc composition and steel core/attachment configuration can be manufactured according to project specifications.
